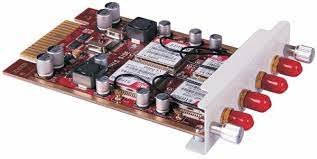

Zycoo 4GSM trunk module SMS/Voice (for U50/100/P2) Hubtech Shop. Network

Zycoo 4GSM trunk module SMS/Voice (for U50/100/P2)  is designed with SIM900 for global market, SIM900 is a quad-band GSM engine that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.

4 GSM module supports CooVox-U50/ CooVox-U100 IP Phone System for GSM connection. Each port has one LED(Light-Emitting Diodes). Designed with SIM900 for global market, SIM900 is a quad-band GSM engine that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.

The 4GSM module has 4 GSM ports for four SIM Cards from any operator and is supported by the CooVox U50 and U100 models in addition to the P appliances. It includes 4 wired antennas for a better reception location.  The Zycoo 4GSM trunk module SMS/Voice (for U50/100/P2) is compatible with the CooVox U50 and U100 models in addition to the P appliances

With unique modular design, CooVox series provide flexible telephony interfaces combination while allowing for future scalability. Zycoo 4GSM trunk module SMS/Voice (for U50/100/P2) comes with built-in rich SIP capabilities. Besides, CooVox allows you to decide what types of extensions and physical trunks you need in your telephone system.

Designed with SIM 900 for global market, Zycoo 4GSM trunk module SMS/Voice SIM 900 is a quad-band GSM engine that works on frequencies GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz. Interoperable modules 4FXO, 4FXS, 4BRI, 1PRI, Supported protocols Voice (2G), SMS, Accessibility.

Zycoo 4GSM trunk module SMS/Voice Specification

• The Red LED indicates port status:
• Solid Red = Module loading successful
• Blink Red = Channel Ringing
• If the LED is off, the GSM module is loading failure.
• The Red LED indicates port status:
• Solid Red = TE Model
• The Green LED indicates port status:
• Solid Green = NT Model
• If the LED is off, the module is loading failure.\
