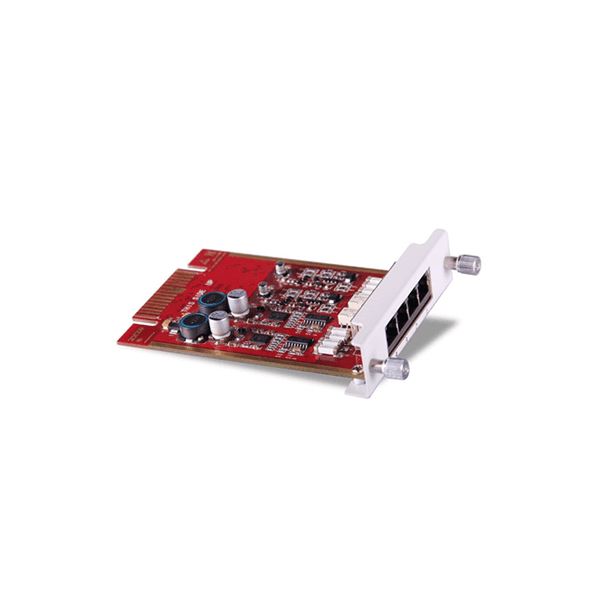

ZYCOO 2FXOS U50 U100 2FXOS module with 2FXO and 2FXS interface 1

ZYCOO 2FXOS U50-U100 2FXOS module with interface 2FXO and 2FXS

Name: ZYCOO 2FXOS U50-U100 2FXOS module with interface 2FXO and 2FXS
SKU: TS17491
Availability: InStock

Original price was: KSh14,500.00.Current price is: KSh13,500.00. + VAT

ZYCOO 2FXOS U50-U100 2FXOS module with interface 2FXO and 2FXS interfaces are used inside of your PBX, they do not connect directly to the PSTN. One FXS channel is required for each telephone that you wish to connect to your Asterisk system.

SKU: TS17491 Category: Uncategorized

Description
Reviews (0)

ZYCOO 2FXOS U50-U100 2FXOS module with interface 2FXO and 2FXS Hubtech Shop. Network

ZYCOO 2FXOS U50-U100 2FXOS module with interface 2FXO and 2FXS is mixed interface of foreign exchange office and foreign exchange station that connect to office and station. It includes 2FXO ports and 2FXS ports, and can be combined with BRI, PRI, GSM module. The FXO interfaces are used to connect your PBX to the PSTN. One FXO channel is required for each line you receive from your telco. The 2FXOS (Foreign Exchange Office & Foreign Exchange Station) module applies to CooVox-U50/U80/U100 IP Phone System with 4 RJ11 ports for connection. Each port has one LED (LightEmitting Diode), which is assembled on the mainboard.

Zycoo 2FXOS (Foreign Exchange Office & Foreign Exchange Station) 2FXOS is the mixed interface of foreign exchange office and foreign exchange station that connect to office and station. It includes 2FXO ports and 2FXS ports and can be combined with BRI, PRI, GSM module. FXO interfaces are used to connect your PBX to the PSTN. One FXO channel is required for each line you receive from your telco. FXS interfaces are used on the inside of your PBX, they do not connect directly to the PSTN. One FXS channel is required for each telephone that you wish to connect to your Asterisk system.

ZYCOO 2FXOS U50-U100 2FXOS module with interface 2FXO and 2FXS Specs

Ring Generation and Ringing T rip
•Loop Closure Detection
•Loop Disconnect
-Loop Reversal
•Loop Voltage and Current Monitoring
•On-hook and Off-hook T ransmission
•Hook-flash Detection
•DTMF Signalling
-Programmable Audio Gain
•On-board Power Generation
•Constant Loop Current: 20mA
The loop start Analog Interface(FXS) provides the following features:
•Detects ringing when on-hook
-Detects loop current when off-hook
•Detects when tip/ring voltage crosses a set voltage when on-hook or off-hook (called DC
triggering)
• accommodate private branch exchange (PBX) with –48 V battery voltage
•Loop current range: 13-110mA
