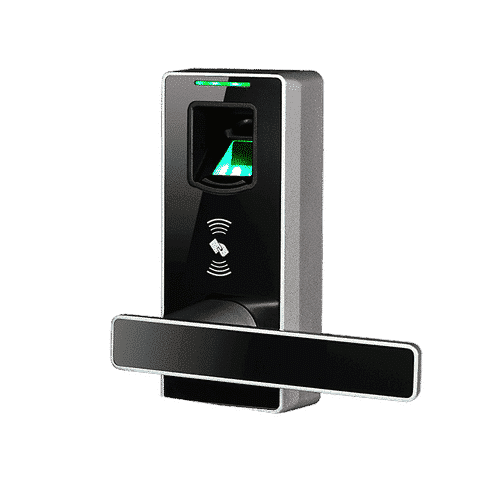

Zkteco ZK ML10-ID Fingerprint + RFID card Door Lock
Zkteco ZK ML10-ID Fingerprint + RFID card Door Locktechnology is easy to program and install, as no wiring is required. It’s a plug ‘n play replacement to your old “lock & key” door knob. Registering users with their fingerprints is also quick and easy. Each ML10 door lock can store and recognize up to 40 users.ML10-ID users’ registration data remains safely stored in the device, even in the event of a total power outage, so there is never a need to re-enroll users. And, there’s no need to change the locks when a previously authorized user is no longer permitted door access.
Ideal for residential and small business applications, the ML10-ID’s door handle, latch and strike are reversible for either left or right-handed preference. Its Do-it-Yourself design makes upgrading to ML10-ID swift and simple. Powered by four AA alkaline batteries, the ML10 signals an audible warning when it’s time to replace the batteries. And, in the unlikely event of a total power loss, ML10-ID can still be operated manually by a traditional metal key which ships along with the ML10-ID and instructional guide.
Zkteco ZK ML10-ID Fingerprint + RFID card Door Lock Features
- Rugged, sleek and compact design
- American standard single latch for easy replacement and installation
- Independent clutch motor design under patent protection
- Idle handle design to prevent from forcible entry
- Registration data are stored even if there is power loss
- Handle,latch and strike is reversible design for all door open direction
- Infrared sensor–Touch to open
- Emergency key override (concealed)
- LED indicator and built in buzzer
- External terminals to draw back-up power from a 9V battery
- Low battery warning
- Normal Open mode
- Easy to program and easy to use
- Easy to install–no wiring required
- 3 user groups – Admin, Normal User and Temporary User
- Backset is 60 mm or 70mm (adjustable)
Additional Information
Material
| Material | Zinc Alloy |
|---|
Operating Temperature
| Temperature Range | 0-45 deg C |
|---|
Backup
| Overrides | Mechanical Key and 9V External Battery |
|---|
Backup
| Dimensions | 69(W)×155(L)×35(D) mm |
|---|---|
| Front | 69(W)×155(L)×25(D) mm |
User Capacity
| Admin | 10 |
|---|---|
| Normal User | 60 |
| Temporary User | 10 |
Power supply
| Power | 4 X AA Alkaline Battery |
|---|
Door Thickness
| Standard | 39-46mm |
|---|---|
| Standard | 47-54 mm |
