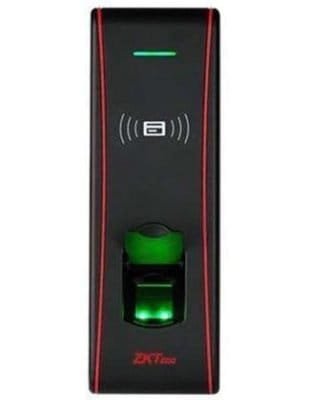

ZK F16 ZKTeco Fingerprint Reader Outdoor access control

ZK F16 ZKTeco Fingerprint Reader Outdoor access control is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other outside damages. It can be installed easily on your network having both Ethernet and RS485 serial ports. Weigand-OUT. F16 is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other outside damages.

Quick Product Specifications

• Reliable, durable and highly accurate ZK optical sensor with ZK Finger V10.0 algorithm

• IP65 Rated design

• Less than 1 second user recognition

• Stores 3,000 templates, 10 000 cards and 30,000 transactions

• Reads Fingerprint and/or RFID card

• Supports 50 time zones, 5 groups and 10 unlock combinations

• Integrated 125kHz RFID proximity reader

• Built-in Serial and Ethernet ports

• It has Built-in Wiegand input/output ports for connection to third party control panels

• Built-in USB port allows for manual data transfer

• Audio – Visual indications for acceptance and rejection of valid/ invalid fingers

Specs

• Fingerprints : 3 000
• Cards : 10 000
• Transactions : 30 000
• Algorithm : ZK Finger 10.0
• Authentication : FP / RFID
• Wiegand : In & Out
• External Reader : LK187-9
• Ingress Protection Rating : IP65
• Communication : TCP/IP, RS485 & USB Host
• Operation : Standalone or Network
• Power : 12VDC 3A
• Features : Sensor Cover
• Software : ZKAccess 3.5, ZKAccess 5.3 (PULLSDK) & BioSecurity 3.0 (PULLSDK)
• Mounting : LK172-8 cable management bracket not included
• Dimensions : 62.5mm x 185mm x 41.5mm

More Products Details at  ZKTeco F16 >> IP65 rated waterproof and dustproof structure
