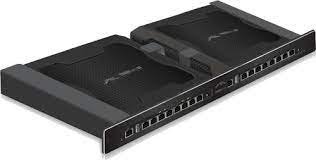

Buy TS-16 Ubiquiti TOUGHSwitch PoE CARRIER 16-port Gigabit switch from Hubtechshop, Nairobi Kenya
With the Ubiquiti Networks TS-16-CARRIER 16-Port TOUGHSwitch PoE Carrier users benefit from passive PoE support and 16 ports of Gigabit Ethernet connectivity. With support for passive Power over Ethernet, IP phones, access points, and other PoE compatible devices can draw their power from the network eliminating the need for separate power sources.
Product Specifications
- Power Input 110-120VAC / 210-230VAC
- Max. Power Consumption 150 W
- PoE Out Voltage Range 45-48VDC / 22-24VDC
- Max. PoE Wattage Per Gigabit Port 18W
Ethernet Networking Interfaces Management Port: 2 x 10/100 Ethernet ports
Data Ports: 16 x 10/100/1000 Ethernet portsPoE Configurable/Port Data Ports: Off/24/48 V LED Indicators Management Port: Power/Link
Data Ports: PoE, Speed/Link/ActivityProcessor MIPS 24K, 400 MHz System Memory 2 x 64 MB Code Storage 2 x 8 MB PoE Method Passive Button 2 x Reset USB Port 2 x USB 2.0 type A (reserved for future use) ESD Rating 24 kV Air / 24 kV contact PoE Wattage Per Gigabit Port Maximum: 11.5 W (24 V), 23 W (48 V) Voltage Range PoE Out Voltage Range: 45-48 VDC / 22-24 VDC Power Input 110-120 VAC / 210-230 VAC Power Consumption 300 W maximum Operating Temperature -13 to +131°F (-25 to +55°C) Operating Humidity 90% (non-condensing) Mounting Integrated 1U rackmount Certifications CE, FCC, IC Dimensions 18.9 x 1.8 x 7.3″ (480.0 x 44.5 x 186.0 mm) Weight 8.71 lb (3.95 kg) Also see;
