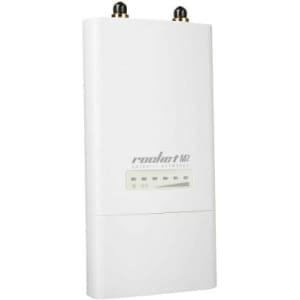

Ubiquiti Rocket M2 airMAX 2.4 GHz

Buy Ubiquiti Rocket M2 airMAX 2.4 GHz

The RM2 Ubiquiti Rocket M2 airMAX 2.4 GHz is a rugged, hi-power, very linear 2×2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.

ROCKET M2: 802.11N MIMO 2.4GHz Rocket AP 2.4GHz Hi Power 2×2 MIMO airMAX TDMA basestation Specifications:

– Processor Specs: Atheros MIPS 24 KC, 400MHz
– Frequency: 2.4Ghz Channels 1-11 (Channels 12-14 available in INTL version)
– Memory Information: 64MB SDRAM, 8MB Flash
– Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
– Approvals: FCC Part 15.247, IC RS210, CE
– RoHS Compliance: YES
– RF Connector: 2x RPSMA (Waterproof)
– Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)

Key Product Features

• Range: 50KM+
• Breakthrough speed: 150Mbps+ real throughput TCPI/IP
• Specifically designed for outdoor Point-to-Point bridging and PTMP Airmax base-station applications.
• Rugged, hi-power, very linear 2×2 MIMO radio with enhanced receiver performance.
• 24-volt Power Over Ethernet (PoE) adapter

Includes:

– Rocket M2
– 24V PoE Adapter and Power Cord
– Mount and mounting strap

Ubiquiti Rocket M2 – Technical Specifications

System Information

• Processor Specs: Atheros MIPS 24KC, 400MHz
• Memory Information: 64MB SDRAM, 8MB Flash
• Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet or 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
• Wireless Approvals: FCC Part 15.247, IC RS210, CE or FCC Part 90Y
• RoHS Compliance: Yes
• Enclosure Size: 16 x 8 x 3cm (length, width, height)
• Weight: 0.5kg
• Enclosure Characteristics: Outdoor UV Stabilized Plastic
• Mounting Kit: Pole Mounting Kit included
• Power Supply: 24V, 1A POE Supply included
• Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
• Operating Temperature: -30C to 75C
• Operating Humidity: 5 to 95% Condensing
• Shock and Vibration: ETSI300-019-1.4
• RF Connector: 2x RP-SMA (Waterproof) or 2x RP-SMA and 1x SMA (Waterproof)
• Max Power Consumption: 6.5 Watts or 8 Watts
