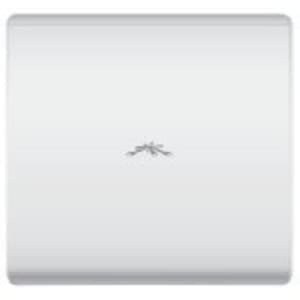

Buy Ubiquiti PowerBridge M5 Carrier Class 5GHz MIMO Bridging Solution

Ubiquiti PowerBridge M5 Carrier Class 5GHz MIMO Bridging Solution is a revolutionary performance in a compact and weatherproof design. it features  Advanced Antenna Technology Super-Efficient 25dBi Dual-Polarity Array Panel Design provides optimum MIMO performance at long distances.

Breakthrough Wireless Performance, AirMax and AirControl Support 150+Mbps of real outdoor throughput and up to 20km+ range. PowerBridge M products utilize Ubiquiti’s revolutionary AirMax TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, AirControl application allows operators to centrally manage 100’s of devices.

Ubiquiti PowerBridge M5 Carrier Class Key Features

• Range: 20km+
• Memory: 64MB SDRAM, 8MB Flash
• Maximum Power Consumption: 8 Watts
• Operating Temp: -30°C to +80°C
• WIRELESS BRIDGE, OUTDOOR MIMO 5GHz 500mW 25DBI.
• Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking
• Pole Mounting Kit Included
• Robust, Efficient Mechanical Design
• PowerBridge M5 Carrier Class 5GHz MIMO Bridging Solution
• Advanced Antenna Technology

PBM5 packs revolutionary performance as a result it provides a Super-Efficient 25dBi Dual-Polarity Array Panel.

In short, the breakthrough Wireless Performance ensures the AirMax and AirControl Support 150+Mbps of real outdoor throughput and up to 20km+ range.

Ubiquiti’s airMAX technology comes in a compact and weatherproof design thus exhibiting outstanding performance in outdoor environments.

Finally, the TDMA airMAX protocol enables unprecedented scalability in the same manner a high throughput and low latency in unlicensed.

Product Specifications:

System:

Processor Specs are Atheros MIPS 24KC, 400MHz.
Memory Information: 64MB SDRAM, 8MB Flash.
Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface.

Regulatory or Product Compliance:

Subsequently the Wireless Approvals: FCC Part 15.247, IC RS210, CE.
It is also Compliant with RoHS.

Physical Electrical Environment:

Enclosure Size: 445 x 416 x 34mm.
Weight: 3.82kg.
Enclosure Characteristics: Outdoor UV Stabilized Plastic.
Mounting Kit: Pole Mounting Kit included.
Max Power Consumption: 8 Watts.
Power Supply: 24V, 1A surge protection integrated POE adapter included.
Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return).
Operating Temperature: -30C to +80C.
Operating Humidity: 5 to 95% Condensing.
Shock and Vibration: ETSI300-019–1.4.

Furthermore the Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking.

Consequently airOS provides features such as custom wireless settings, bridge or routing configuration and system management service.
