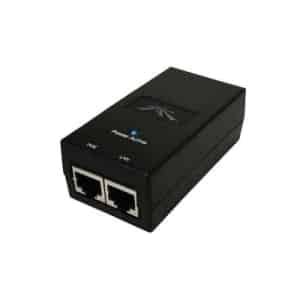

This Ubiquiti POE-48-24W Power Over Ethernet PoE Injector/adapter is suitable for use with Ubiquiti Wireless Networking devices. This Ubiquiti PoE adapter is supplied with a power cord.

Key Features

• Power over Ethernet adapter with 48V/24W capacity.
• Allows long ethernet cable runs, typically up to 100 metres.
• LAN Activity Indicator: Detects if LAN is connected to the device.
• Remote Reset Capability: Supports Airmax Bullet, Rocket, Nano, Pico.

Warning!

This unit can be connected directly to the UniFi UAP-PRO and UAP-AC but must NOT be connected directly to other Ubiquiti devices that are limited to a

24v input maximum. Connecting those devices directly to this unit without the Ubiquiti Outdoor Instant 802.3af 48v to 16v adapter will damage those devices.

General

• Dimensions: 86 x 46 x 33 mm (3.39 x 1.81 x 1.30″)
• Weight: 100 g (3.53 oz)
• Output Voltage: 48VDC @ 0.32A
• LAN Activity Indicator: No
• Gigabit LAN Port: Yes
• Remote Reset Capability: Yes
• Reset Button: No
• Rated Voltage: 100-240VAC @ 50/60Hz
• Input Current: 500mA @ 90VAC
• Inrush Current: <100A Peak @ 25°C
• Efficiency: 84.25+%
• Output Ripple: 200mV p-p
• Switching Frequency: 65 kHz
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Storage Temperature: 30 to 70°C (-22 to 158° F)
• Operating Humidity: 5 to 90% Noncondensing
• AC Connector: IEC-320 C6
• Data IN / POE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20 µs) Power
• Peak Pulse Current: 36A (10/1000 µs) Data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns
• Certifications: CE, FCC, IC, UL
