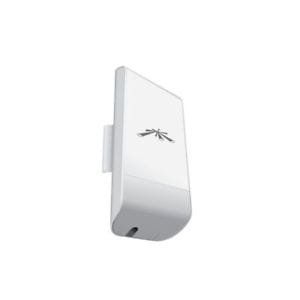

Ubiquiti Nanostation LOCO M5

Original price was: KSh10,500.00.Current price is: KSh10,000.00. + VAT

Buy Ubiquiti Nanostation LOCO M5 Outdoor MIMO 11n 5GHz from Hubtechshop, Nairobi Kenya

Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Enclosure Size 163 x 31 x80
Power Supply 24V, 0.5A surge portection integrated POE adapter included

SKU: TS14399 Categories: Networking, Ubiquiti Kenya

Description
Reviews (0)

Buy Ubiquiti Nanostation LOCO M5 Outdoor MIMO 11n 5GHz from Hubtechshop, Nairobi Kenya

The Ubiquiti Networks NanoStation locoM5 Indoor/Outdoor airMAX CPE from Ubiquiti Networks is a cost-effective and reliable solution for high performance. It features up to

10km of range performance, 25+Mb/s of throughput performance, an intuitive AirOS by Ubiquiti. The NanoStation Loco also features broadband wireless CPE technology.

NanoStation5 Loco exhibits optimal antenna performance. NanoStation5 Loco maintains 13dBi of dual-polarity antenna gain in a compact form-factor using an efficient and innovative patch array antenna design.

Processor SpecsAtheros MIPS 24KC, 400MHz
Memory Information32MB SDRAM, 8MB Flash
Networking Interface1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface

General Specifications
Processor	Atheros SOC, MIPS 4KC, 180 MHz Processor
Memory	16 MB SDRAM, 4 MB flash
Networking Interface	1 x 10/100 BASE-TX (Cat5, RJ-45) Ethernet interface
Range	Outdoor (BaseStation Antenna Dependent): Over 16404′ (5000 m)

Radio Operating Frequency
TX Specification	Radio Operating Frequency: 5.475 to 5.825 GHz802.11a OFDM Data Rate: Average Power: Tolerance 6 Mb/s: 22 dBm: +/-1.5 dB 9 Mb/s: 22 dBm: +/-1.5 dB 12 Mb/s: 22 dBm: +/-1.5 dB 18 Mb/s: 22 dBm: +/-1.5 dB 24 Mb/s: 22 dBm: +/-1.5 dB 36 Mb/s: 20 dBm: +/-1.5 dB 48 Mb/s: 19 dBm: +/-1.5 dB 54 Mb/s: 17 dBm: +/-1.5 dB
RX Specification	Radio Operating Frequency: 5.475 to 5.825 GHz802.11a OFDM Data Rate: Sensitivity: Tolerance 6 Mb/s: -93 dBm: +/-1.5 dB 9 Mb/s: -92 dBm: +/-1.5 dB 12 Mb/s: -90 dBm: +/-1.5 dB 18 Mb/s: -89 dBm: +/-1.5 dB 24 Mb/s: -87 dBm: +/-1.5 dB 36 Mb/s: -82 dBm: +/-1.5 dB 48 Mb/s: -76 dBm: +/-1.5 dB 54 Mb/s: -73 dBm: +/-1.5 dB

Channel Size Support
Adjustable Channel Size Support	5 MHz, 10 MHz, 20 MHz, 40 MHz

Antenna
Gain	13 dBi antenna
Polarization	Multi-polarized
Polarization Selection	Software controlled
3 dB Beamwidth Azimuth	45°
Survival Wind Speed	185 km/hour
VSWR	1.4:1.0
Front to Back Ratio	30 dB+
3 dB Beamwidth Elevation	45°

Power
Power Supply	12 V, 1 A (12 W) (power supply and injector included)
Power Method	Passive Power over Ethernet (pairs 4, 5+, 7, 8 return)

Environmental
Operating Temperature	-4 to +158°F (-20 to +70°C)
Operating Humidity	5 to 95% (condensing)

Software Specification
Software	AirOS

Compliance and Approvals
Compliance	RoHS
Approvals	FCC Part 15.247, IC RS210

Memory	32 MB SDRAM, 8 MB Flash
Networking Interface	1x 10/100 Ethernet Port
Operating Frequency	5170-5875 MHz
Dimensions	163x31x80 mm
Weight	0.18 kg
Power Supply (PoE)	24V, 0.5A
Polarization	Dual Linear
Enclosure Characteristics	Outdoor UV Stabilized Plastic
Mounting	Pole Mounting Kit Included
Operating Temperature	-30 ‒ 75° C
Operation mode	AP, Client, WDS
Encryption	WEP 64/128/152, WPA, WPA2, 802.1X
Wi-Fi Standards	802.11a/n
Max.output power	23 dBm
Sensitivity	-83 dBm
Supported OS	AirOS
Default IP	192.168.1.20
Default name	ubnt
Default password	ubnt
Operating Humidity	5 – 95%
