Buy Ubiquiti Bullet M5hp – Outdoor Radio Wireless

Key Features

• 25 dBm +/- 2dB Atheros chipset,
• MIPS 24KC, 400MHz,
• 32MB SDRAM, 8MB Flash,

• 1 x 10/100 Base-TX (Cat.5, RJ-45) Ethernet Interface

BulletM5 HP Specifications:

• Processor Specs: Atheros SOC, MIPS 24 KC, 400MHz
• Memory Information: 32MB SDRAM, 8MB Flash
• Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
• Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: YES
• RF Connector: Integrated N-type Male Jack (connects directly to antenna)
• Enclosure Size: 15.2 x 3.7 x 3.1cm
• Weight: 0.18kg
• Enclosure Characteristics: Outdoor UV Stabilized Plastic
• Up to 24V
• Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• Operating Temperature: -40 to 80°C
• Operating Humidity: 5 to 95% condensing
• Shock and Vibration: ETSI300-019-1.4
• Max. Power Consumption: 6W
• Operating Frequency: 5745 – 5825MHz

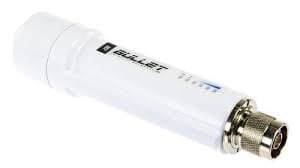

The Ubiquiti Bullet M5 HP airMAX is the latest version of the popular Ubiquiti Bullet. Like its predecessor, this Ubiquiti Bullet M5 HP airMAX is a wireless radio/access point with an integrated Type N RF connector that can be directly plugged into any Antenna to create a powerful and robust outdoor Access Point, Client, or Bridge. The Bullet M features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design.

Ubiquiti airMAX Bullet M5 HP – Technical Specifications

System Information

• Processor Specs: Atheros MIPS 24KC, 400MHz
• Memory Information: 32MB SDRAM, 8MB Flash
• Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface

Regulatory/Compliance Information

• Wireless Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: Yes

Range Performance

• Outdoor (Antenna Dependent): Over 50km

Physical/Electrical/Environmental

• RF Connector: Integrated N-type Male Jack (connects directly to antenna)
• Enclosure Size: 15.2cm. length x 3.1 cm. height x 3.7cm. width
• Weight: 0.18kg
• Enclosure Characteristics: Outdoor UV Stabalized Plastic
• Max Power Consumption: 6 Watts
• Power Rating: Up to 24V
• Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• Operating Temperature: -40C to +80C
• Operating Humidity: 5 to 95% Condensing
• Shock and Vibration: ETSI300-019-1.4
