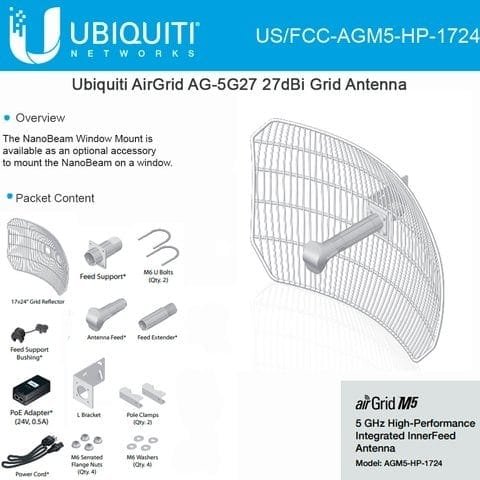

Ubiquiti airGrid M5 27 dBi airMAX Wireless Broadband CPE (AG-HP-5G27)

Ubiquiti airGrid M5 27 dBi airMAX Wireless Broadband CPE (AG-HP-5G27) utilizes wireless technology to establish reliable and high-speed communication links. The airGrid M5 is suitable for both point-to-point (PtP) and point-to-multipoint (PtMP) configurations, providing flexibility for various network setups. The antenna usually has a specific gain and beamwidth, contributing to the performance and coverage of the device. The airGrid M5 offers a certain throughput and data rate, allowing for the transfer of data at high speeds over the wireless link.

UBIQUITI AirGrid M5 AirMAX – outdoor CPE, frequency: 5 GHz, throughput: 100+ Mbps, range: 30+ km, 1 x LAN, incl. 27 dBi antenna

Processor:

Specs Atheros MIPS 74Kc, 560 MHz
Memory Information: 64 MB DDR2, 8 MB Flash
Networking Interface: (1) 10/100 Ethernet Port

Ubiquiti airGrid M5 27 dBi airMAX Wireless Broadband CPE (AG-HP-5G27) Regulatory / Compliance Information

Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes

Physical / Electrical / Environmental

Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting Kit: Pole Mounting Kit (Included)
Max. Power Consumption: 3W
The Power Supply: 24V, 0.5A PoE Adapter (Included)
Power Method: Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature: -30 to 75° C (-22 to 167° F)
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
ETSI Specification: EN 302 326 DN2

Dimensions (Mount Included): 620 x 460 x 360 mm (24.41 x 18.11 x 14.17″)
Weight (Mount Included): 2585 g (5.699 lb)
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 102 N @ 200 km/h (23 lbf @ 125 mph)

The airGrid M5 is designed for outdoor deployment, featuring weather-resistant and durable construction to withstand different environmental conditions. AirGrid M5 adheres to wireless standards, such as IEEE 802.11a/n, to ensure compatibility with other devices and networks. The device often supports Power over Ethernet, allowing both data and power to be delivered over a single Ethernet cable for simplified installation.

Complete antenna and radio system integration provides affordable cost/performance solutions to the wireless broadband industry. The low-cost, high-performance, robust “all-in-one” design and light weight of airGrid M make it versatile and ideal in several different applications.
