-3%

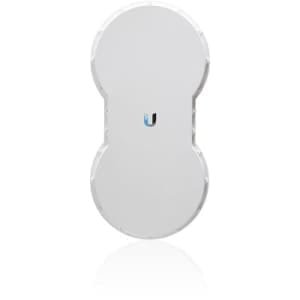

Ubiquiti AirFiber 5 Wireless Bridge (AF-5)

Original price was: KSh190,000.00.Current price is: KSh185,000.00. + VAT

Buy Ubiquiti AirFiber 5 Wireless Bridge (AF-5) from Hubtechshop, Nairobi Kenya

Quick Product Specifications

Revolutionary performance
Long-range links: 100+ km
Low-latency carrier backhaul

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: TS14769 Category: Ubiquiti Kenya

Description
Reviews (0)

Buy Ubiquiti AirFiber 5 Wireless Bridge (AF-5) from Hubtechshop, Nairobi Kenya

Ubiquiti AF-5 AirFiber 5 Wireless Bridge is a revolutionary backhaul point-to-point radio system. it offers 5GHz with 100Km+ internet range at incredible 1Gbps+ speeds, the airFiber5 will take advantage of popular worldwide mid-band frequencies.

Quick Product pecifications

40 W power consumption
CE, FCC, IC certification
-40 to 55°C operating temparature
125 mph Wind Survivability
AF5 operating frequency
GPS Synchronization
100Km+ network Range
1Gbps+ throughput
Revolutionary performance
Long-range links: 100+ km
Low-latency carrier backhaul

Product information

Technical Specifications

Mechanical
Dimensions	938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08″
Weight	16 kg (35.27 lb)
Mounting	Pole mount kit (Included)
Wind Loading	863 N @ 200 km/h (194 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking interface	(1) GbE RJ45 port (1) 10/100 MbE RJ45 port
Auxiliary Port	(1) RJ-12, alignment tone port
Power method	Passive PoE
Power supply	50V, 1.2A PoE GigE adapter (Included)
Supported voltage range	42—58V DC
Max. power consumption	40 W
Operating temperature	-40 to 55°C (-40 to 131° F)
Certifications	CE, FCC, IC
System
Max. throughput	1.2+ Gbps
Max. range*	100+ km *Dependent on regulatory region.
Packets per second	1+ million
Encryption	128-Bit AES
Uplink/Downlink Ratio	50% Fixed
Radio Frame Synchronization	GPS
RF
Operating frequency	5470 – 5600 MHz, 5650 – 5850 MHz (FCC 15.247, 15.407, IC RSS 210) 5470 – 5875 MHz (ETSI EN 301 893, EN 302 502) 5470 – 5950 MHz (Other Regions)
GPS	GPS Clock Synchronization
EIRP	~50 dBm *Dependent on regulatory region and frequency band.
Frequency accuracy	±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization
Channel bandwidth	10/20/30/40/50 MHz
Modulation	1024QAM MIMO 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO ½ Rate QPSK xRT ¼ Rate QPSK xRT
Gain TX RX	23 dBi 23 dBi
Beamwidth	6°
Front-to-back ratio	70 dB
Polarization	Dual-slant
Cross-polarity isolation	> 28 dB
LEDs
System	(12) Status LEDs: Data port pink/activity Data port speed Management port link/activity Management port speed GPS synchronization Master/slave Link status Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overload Remote and local displays (Calibrated signal strength)
