Ubiquiti AIRFIBER 5 GHz Carrier Backhaul Radio AF 5X 500MBPS imjsh4 fvkaah

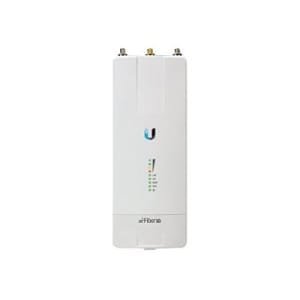

AF-5X 500MBPS Ubiquiti AIRFIBER 5 GHz Carrier Backhaul Radio

Original price was: KSh62,000.00.Current price is: KSh60,000.00. + VAT

Buy Ubiquiti AIRFIBER 5 GHz Carrier Backhaul Radio AF-5X 500MBPS from Hubtechshop, Nairobi Kenya

Visit our store and enjoy:

  • Genuine, brand new, sealed stock
  • Price-match against authorized dealers
  • Installation & configuration services available
  • Expert advice on compatibility with your network
SKU: TS14762 Category:

Buy AF-5X 500MBPS Ubiquiti AIRFIBER 5 GHz Carrier Backhaul Radio from

Hubtechshop, Nairobi Kenya

AF-5X 500MBPS Ubiquiti AIRFIBER 5 GHz Carrier is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD

throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 5X also allows users to customize backhaul

links or upgrade existing PtP links.

Ubiquiti Networks AF-5X-US Specs

Specifications
RF Connectors2 x RP-SMA Weatherproof (CH0, CH1)
1 x SMA Weatherproof (GPS)
GPS AntennaExternal, Magnetic Base
Power Supply24 V, 1 A PoE Gigabit Adapter (included)
Power MethodPassive Power over Ethernet
MountingairFiber X Mount (Rocket Mount compatible)
GPS Pole Mount (included)
CertificationsDFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1
Networking Interfaces
Data Port1 x 10/100/1000 Ethernet Port
Management Port1 x 10/100 Ethernet Port
System
ProcessorINVICTUS IC
Maximum Throughput500+ Mbps
Maximum Range656,168′ / 200,000 m
Encryption128-bit AES
Operating SystemairOS F
Wireless ModesMaster/Slave
Radio Frequencies
Operating FrequencyFCC 15.407: 5150 – 5350 MHz, 5470 – 5850 MHz
IC RSS-210: 5470 – 5600 MHz, 5650 – 5850 MHz
ETSI EN 301 893, EN 302 502: 5470 – 5875 MHz
Other Regions: 5150 – 5950 MHz
PowerMax. Conducted TX Power: 26 dBm
(Dependent on regulatory region)
Frequency Accuracy± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization
Channel Bandwidth10/20/30/40/50 MHz selectable
Programmable uplink and downlink duty cycles
Environmental
Operating Temperature-40 to 131°F / -40 to 55°C
Dimensions & Weight
Dimensions8.82 x 3.32 x 1.89″ / 224.03 x 84.33 x 48.01 mm
Weight0.77 lb / 0.35 kg
Packaging Info
Package Weight2.45 lb
Box Dimensions (LxWxH)10.5 x 4.4 x 4.4″

AF-5X 500MBPS Ubiquiti AIRFIBER 5 GHz Carrier Key Features:

  1. High-Capacity Wireless Backhaul: The AF-5X provides a robust and high-capacity wireless backhaul solution, delivering data rates of up to 500 Mbps for point-to-point connectivity.
  2. 5 GHz Frequency Band: Operating in the 5 GHz frequency band, the AF-5X takes advantage of the available spectrum for high-throughput and reliable wireless communication. It is suitable for deployments in challenging RF environments.
  3. Advanced Radio Technology: The radio features advanced radio technology, including MIMO (Multiple-Input, Multiple-Output) and proprietary airFiber protocols, ensuring efficient use of the available spectrum and maximizing throughput.
  4. Plug-and-Play Integration: The AF-5X is designed for seamless integration with other Ubiquiti airFiber products, allowing for a plug-and-play setup. It is part of the airFiber X platform, providing scalability and flexibility in network design.
  5. Low-Latency Performance: With low-latency performance, the AF-5X is suitable for applications that require real-time data transfer, such as video surveillance, VoIP, and other latency-sensitive applications.
  6. Dynamic Frequency Selection (DFS): The DFS feature allows the radio to automatically select and use the best available channels, optimizing performance and minimizing interference from other devices operating in the same frequency band.
  7. Robust Construction: Built with a durable and weather-resistant design, the AF-5X is suitable for outdoor deployments. Its robust construction ensures reliable performance in various weather conditions.
  8. Gigabit Ethernet Connectivity: The AF-5X features Gigabit Ethernet ports, providing high-speed connectivity and facilitating easy integration into your existing network infrastructure.

Upgrade your wireless backhaul connectivity with the Ubiquiti AirFiber 5X 5 GHz Carrier Backhaul Radio. Experience high-capacity, low-latency performance for point-to-point links, and enjoy the reliability and efficiency needed for demanding applications.
