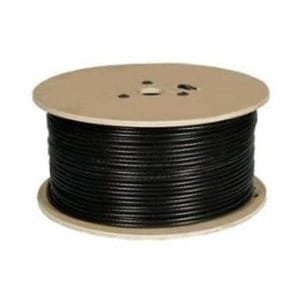

Buy RG 59 CCTV Cable Without Power 200M from Hubtechshop, Nairobi Kenya

RG-59 is a type of coaxial cable that is commonly used in applications such as CCTV (Closed-Circuit Television) systems. It’s primarily designed for transmitting video signals. However, it does not carry electrical power. If you’re setting up a CCTV system and need to provide power to the cameras, you may need to use a separate power cable or consider using a combination cable.

1. RG-59 for Video:
   • RG-59 is excellent for transmitting video signals over relatively short distances without significant signal loss. It has a characteristic impedance of 75 ohms, making it suitable for video applications.
2. Power Supply for Cameras:
   • Cameras in a CCTV system typically require power for operation. This power is usually provided separately from the video signal. Commonly, low-voltage power (12V DC or 24V AC) is supplied to the cameras.
3. Combination Cables:
   • Some cables are available that combine both the video and power conductors in a single cable. These cables may be referred to as Siamese cables. They often consist of an RG-59 coaxial cable for video and additional wires for power. This can simplify the installation process by running a single cable for both video and power needs.
4. Separate Power Cable:
   • If you’re not using a combination cable, you will need a separate power cable to provide electrical power to the cameras. This could be a standard power cable with the appropriate connectors for your cameras.
5. Connector Types:
   • Ensure that the connectors on both the video and power cables match the connectors on your cameras and recording equipment. Common connectors for RG-59 cables include BNC connectors for video and DC power connectors for power.

Product details
