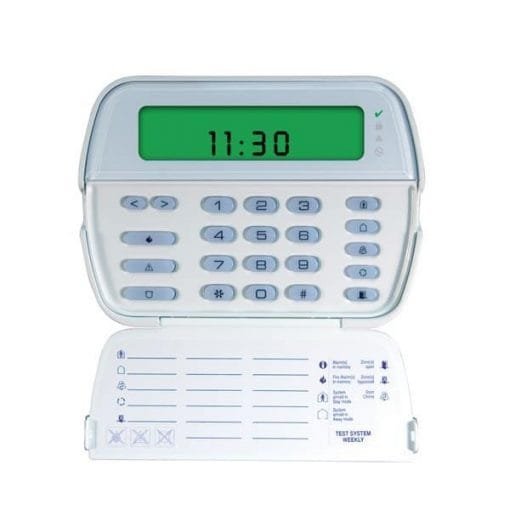

PowerSeries 64-Zone LCD Full-Message Keypad PK5500

PowerSeries 64-Zone LCD Full-Message Keypad PK5500 is a full message keypad for DSC Power series alarm systems.  In addition to offering more display options compared to the PK5501, the PK5500 also makes installer programming of the alarm system much simpler.

DSC PowerSeries high-quality, slim-profile alarm keypads use advanced plastics technology to achieve a clean, unobtrusive look that homeowners welcome and installers will appreciate their easy programming and installation. The PK5500 keypad features an input/output terminal that can be programmed to operate as a zone input, programmable output or as a low-temperature sensor.

The DSC PowerSeries PK5500 keypad has an integrated temperature sensor that can be programmed to activate when room temperature dips below 43°F (6°C) and restores at 47°F (8°C). Built-in logic prevents the panel from cycling in and out of alarm mode during minor temperature fluctuations, helping to reduce false alarms.

The PowerSeries PK5500 alarm keypad does not provide support for wireless zones. If you want to upgrade your DSC PowerSeries security system with capability for up to 32 wireless zones and 16 wireless keyfobs, you should get the RFK5500 PowerSeries keypad.

PK5500 DSC PowerSeries 64-Zone Full-Message Alarm Keypad Features

• 8 language support

• Global partition status

• Full 32-character programmable phrases

• Modern, slim-line landscape keypad

• Enlarged keypad buttons

• 5 programmable function keys

• Intuitive clock programming (only available with PC1616, PC1832, PC1864 security systems)

• Input/Output terminal can be programmed to operate as a zone input, programmable output or as a low temperature sensor

• Individual FAP keys

• Multiple door chime per zone

• Adjustable backlight and keypad buzzer

• Wire channel

• Dual wall-mount and front cover tamper

• Easy-to-install mounting hinge

• Surface or single-gang box mount

• New AC status ICON

• Backed by DSC’s 1-year limited manufacturer’s warranty

PK5500 keypad also includes;

Adjustable backlit keys that address low-light situations and five programmable keys for simple one-button activation of DSC PowerSeries security system functions.

The PK5500 64-zone full message keypad supports eight languages, global partition status, and full, 32-character programmable phrases.

GeoArm recommends either the RFK5500 or the PK5500 PowerSeries keypad if you are going to be programming your DSC PowerSeries security system through a keypad.

To simplify system usage, the PK5500 keypad features five programmable keys for easy one-button activation of system functions.

The default tasks assigned to the five function keys stay arming, away arming, door chime, smoke detector reset, and quick exit. With the quick exit function, there’s no need to disarm and rearm your DSC PowerSeries security system every time an occupant leaves the house or lets the dog out, for example.
