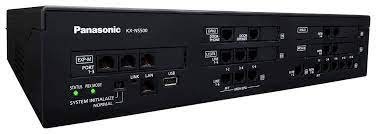

Buy Panasonic KX-NS500 Smart Hybrid PBX
Will probably be your business searching for high-quality communications technology? Telephone Systems that will support your day-to-day operations
and also be as your business does? Panasonic NS500 PBX System provides the right solution.This smart hybrid PBX is a cost-effective Phone System
for companies with up to 250 employees. It can be flexibly configured and expanded based on the specific requirements of any business. The KX-NS500
Phone System has several business friendly advanced features and starts from 6 analogue trunks and 18 extensions, up to 288 extensions with Expansion
Units. For additional flexibility and productivity, you may also benefit from its built-in applications, such as call centre solution, mobility solution and voice mail
system to achieve greater working efficiency.These functions are very benefitial for your business and increase client satisfaction. Finally, if you want to migrate
for an IP communications system, the Panasonic NS500 is once again what you want. By simply choosing the KX-NS500, you may either migrate or expand your
existing legacy system, easily and quickly.
Ideal for supporting office functions across your company, the KX-NS500 incorporates mobile telephony, desk-based phones and highly configurable voicemail
systems to make sure that staff remain connected, wherever they’re working. Combined, they improve functionality, keep costs down, simplify administration and
enhance customer care.
Perfect for supporting office functions across your business, the KX-NS500 incorporates mobile telephony, desk-based phones and highly configurable voicemail
systems to ensure that staff stay connected, wherever they’re working. Combined, they improve functionality, reduce costs, simplify administration and enhance customer service.
You can also use IP Phones Like Panasonic KX-HDV230 IP Phone, Panasonic KX-HDV430 Executive HD IP Video Collaboration Desktop Phone, Panasonic KX-HDV130 basic SIP phone
The Panasonic KX-NS500 Smart Hybrid PBX supports the following number of trunks.
Type | KX-NS500 | |||
Basic System | With 1 KX-NS520 | With 2 KX-NS520 | With 3 KX-NS520 | |
Total Number of Trunks | 100 | 130 | 160 | 190 |
---|---|---|---|---|
Legacy | 36 | 66 | 96 | 126 |
BRI | – | – | – | – |
PRI23 | – | – | – | – |
PRI30 | 30 | 60 | 90 | 120 |
T1 | – | – | – | – |
E1 | 30 | 60 | 90 | 120 |
Analogue | 12 | 24 | 36 | 48 |
IP | 64 | 64 | 64 | 64 |
H.323 | 32 | 32 | 32 | 32 |
SIP | 64 | 64 | 64 | 64 |
Maximum Terminal Equipment
The following shows the number of each terminal equipment type supported by the KX-NS500.
Type | KX-NS500 | |||
Basic System | With 1 KX-NS520 | With 2 KX-NS520 | With 3 KX-NS520 | |
Extensions (DXDP*1) | 162 (168) | 194 (208) | 226 (248) | 258 (288) |
---|---|---|---|---|
Legacy (DXDP*1) | 34 (40) | 66 (80) | 98 (120) | 130 (160) |
SLT | 32 | 64 | 96 | 128 |
DPT | 18 (24) | 34 (48) | 50 (72) | 66 (96) |
APT | 8 | 16 | 24 | 32 |
IP | 128 | 128 | 128 | 128 |
IP-PT | 128 | 128 | 128 | 128 |
SIP | 128 | 128 | 128 | 128 |
SIP Phone | 128 | 128 | 128 | 128 |
S-PS | 128 | 128 | 128 | 128 |
DSS Console | 8 | 8 | 8 | 8 |
CS | 20 | 24 | 28 | 32 |
DPT-CS (2 ch) | 4 | 8 | 12 | 16 |
DPT-CS (8 ch) | 2 | 4 | 6 | 8 |
IP-CS | 16 | 16 | 16 | 16 |
SIP-CS | 16 | 16 | 16 | 16 |
PS | 128 | 128 | 128 | 128 |
VM | ||||
Built-in UM (ch) | 24 | 24 | 24 | 24 |
TVM Unit | 2 | 2 | 2 | 2 |
Doorphone | 2 | 4 | 6 | 8 |
Door Opener | 2 | 4 | 6 | 8 |
External Sensor | 2 | 4 | 6 | 8 |
Also see;
Panasonic KX-NS5110 Voip DSP card
Panasonic KX-NS5172 16-Port Digital Extension Card
The Panasonic KX-NS5174 16port SLT card MCSLC16
