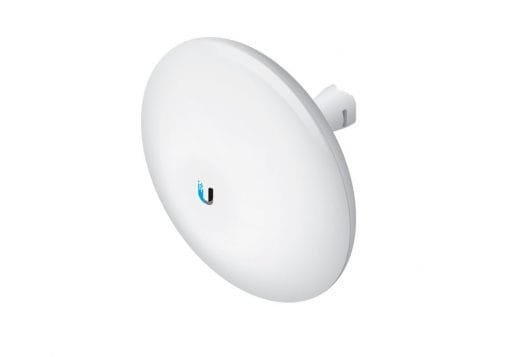

NBE-5AC-Gen2 US – Ubiquiti airMAX NanoBeam biquiti is a member of the airMAX NanoBeam Gen 2 series, designed for point-to-point (PtP) and point-to-multipoint (PtMP) wireless communication. With advanced technology and a compact design, it delivers high-throughput wireless connectivity for various applications.
NBE-5AC-Gen2 US – Ubiquiti airMAX NanoBeam Specifications:
- Dimensions (mount included): 189 x 189 x 125mm (7.44 x 7.44 x 4.92″)
- Weight (mount included): 0.530kg (1.17lbs)
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
- Max. Power Consumption: 8.5W
- Gain: 19dBi
- Networking Interface: (2) 10/100/1000 Ethernet Port / WiFi for Management
- Processor Specs: Atheros MIPS 74Kc, 720MHz
- Memory: 128 MB DDR2, 8 MB Flash
- LEDs: Power, Ethernet, (4) Signal Strength
- Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
- Max. VSWR: 1.5:1
- Channel Sizes:
- PtP Mode: 10/20/30/40/50/60/80MHz
- PtMP Mode: 10/20/30/40MHz
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic
- Mounting: Pole-Mount (kit included), Wall-Mount
- Wind Loading: 45.4N @ 200km/h (10.2lbf @ 125mph)
- Wind Survivability: 200km/h (125mph)
- ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
- Operating Temperature: -40 to 80°C (-40 to 176°F)
- Certifications: CE, FCC, IC
- RoHS Compliance: Yes
- Salt Fog Test: IEC 69-2-11 (ASTM B117), Equivalent: ETS 300 019-1-4
- Vibration Test: IEC 68-2-6
- Temperature Shock Test:
- Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
- Operating Frequency: IEC 68-2-14
- UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
- Operating Frequency: 5150 – 5875 MHz
- Management Radio: 2412 – 2472 MHz
Key Features:
- Frequency Bands:
- Operates in both 2.4 GHz and 5 GHz frequency bands, providing flexibility and avoiding interference.
- Gain:
- 19 dBi gain for directional and focused wireless communication.
- Throughput:
- High-throughput wireless connectivity suitable for bandwidth-intensive applications.
- Integrated Radio:
- Integrated radio with advanced airMAX technology for optimized wireless performance.
- Compact Design:
- NanoBeam form factor for a compact and unobtrusive installation.
- Point-to-Point and Point-to-Multipoint:
- Suitable for both point-to-point and point-to-multipoint wireless links.
- Dual Gigabit Ethernet Ports:
- Equipped with dual Gigabit Ethernet ports for versatile network connectivity.
- Weatherproof Design:
- Built with a weatherproof design, ensuring durability in outdoor installations and various environmental conditions.
- Adjustable Mounting Hardware:
- Adjustable mounting hardware for flexibility in positioning and alignment.
- Power over Ethernet (PoE):
- Supports Power over Ethernet (PoE) for streamlined installation with a single cable carrying both data and power.
- airMAX AC Technology:
- Utilizes airMAX AC technology for enhanced wireless performance and scalability.
