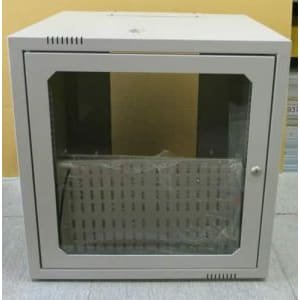

Buy 12U 600 by 450mm Deep Wall Mounted Data Cabinet from Hubtechshop, Nairobi Kenya
12U 600 by 450mm Deep Wall Mounted Data Cabinets are feature-rich rack enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. These racks are multi-functional rack enclosures designed to meet current IT market trends and applications ranging from high density computing and networking to broadcast and audio-video.
12U 600 by 450mm Deep Wall Mounted Data Cabinets Quick Specifications
Aesthetically pleasing framed safty glass front door.
Quick Release doors and Side panels.
Adjustable front and Rear 19″ mounting profiles.
Removable cable entry panel in top and base.
DimensionsType 19 inch standard
Size12U Width 600 mm Height 600 mm Depth450 mm
Gross Weight 25 KG (Including the packaging)
Net Weight 23 KG
- Locking Mechanism:
- Security is crucial. Look for cabinets with secure locking mechanisms to protect your equipment.
- Ventilation and Cooling:
- Cabinets should have proper ventilation options, such as fans or perforated doors, to prevent overheating of equipment.
- Cable Management:
- Cable management features, such as cable entry points and management arms, help keep your cables organized and easily accessible.
- Mobility:
- Consider whether you need a cabinet with casters for easy mobility or if a static installation is sufficient.
- Grounding:
- Ensure that the cabinet has grounding options to maintain proper electrical grounding for your equipment.
- Standards Compliance:
- Check if the cabinet complies with industry standards for data cabinets and server racks.

SPECIFICATION
| NOMINAL HEIGHT | 12U 600 by 450mm Deep Wall Mounted Data Cabinets |
|---|---|
| TOTAL OUTER HEIGHT | 1166mm |
| OUTER WIDTH | 600mm |
| OUTER DEPTH | 800mm |
| MOUNTING DEPTH | 550mm |
| COLOUR | Black RAL9004 |
| MAXIMUM LOAD CAPACITY | 800kg |
| PROTECTION CLASS | IP20 |
| FRONT DOORS | Glass with lock |
| BACK DOORS | Full steel with lock |
| SIDE PANELS | Full steel dismounted on latches with a lock assembly option |
| CABLE DUCTS | 2 pcs – in the ceiling and floor |
| CABLE ORGANIZER | No |
| ASSEMBLY KIT | 20 pcs |
| FRAME THICKNESS | 1.2mm |
| MOUNTING RAIL THICKNESS | 2.0mm |
| DOOR THICKNESS (STEEL) | 1.2mm |
| GLASS THICKNESS | 5.0mm |
| SIDE PANEL THICKNESS | 1.2mm |
| BASE THICKNESS | 1.2mm |
| COVER THICKNESS | 1.2mm |
| ADDITIONAL INFORMATION | – Adjustable feet and transport wheels of high durability – Cold-rolled steel – Surface finish: degreasing, etching, phosphating, powder coating – Protection against rust, oxidation, scratches, corrosion – Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards – Compatible with metric ETSI and 19-inch international standards
|
