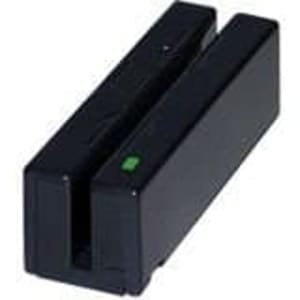

Buy Mini Swipe Reader MSR for POS
Access a range of stand-alone magnetic swipe readers (MSR) and writers suitable for many applications.
The full range of readers is designed to read cards incorporating a magnetic swipe, including credit, loyalty, gift and log-on cards.
In addition, the MSR32x series mag swipe readers can be deployed in airport duty-free shops to read boarding passes and tickets.
Magnetic stripe card writers are available on request. Due to the potential for fraudulent use, we are required to carefully screen potential
users before passing information.Optional mounting brackets are available to enable the readers to be mounted at almost any angle
and integrated into the smallest teller position or desk.
Quick Specifications
- More for the money with this high quality Product
- Offers premium quality at outstanding saving
- Excellent product
- 100% satisfaction
MSR Card readers for POS / Magnetic Card Reader
Magnetic Stripe/Swipe Card Readers MSR. Magnetic stripe card Readers is designed to read cards incorporating a magnetic swipe, including credit, loyalty, gift, and log-on cards. this MSR can also be used in Airports to read boarding passes and tickets.
Mini magnetic card reader model for hot selling RS232/USB/PS2 interface available
MSR Card ReadersSpecifications for use with Point of Sale
- More for the money with this high-quality Product
- Offers premium quality at outstanding saving
- Excellent product
- 100% satisfaction
Specifications:
Dimension | 90mm(L) x 26mm(W) x 28mm(H) | ||
Weight | 85g(approx.) | ||
Power Supply | +5V DV ±5% | ||
Power consumption | 40mA (max.) | ||
Operation Locus | Indoor use | ||
Card Standard | ISO7811/7812 | ||
Track Position | ISO 1 (IATA) | ISO 2 (ABA) | ISO 3 (MINTS) |
Recording Density | 210 BPI | 75 BPI | 210 BPI |
Recording Capacity | 79 Characters (7bits) | 40 Characters (5bits) | 107 Characters (5bits) |
Interface | USB / Serial | ||
Card Thickness | Plastic 0.76 ± 0.08mm | ||
Head Function | Read only 1.5mm | ||
Operation Speed | 10 ~ 150cm/sec | ||
Life of Head | 500,000 card passes (1 pass : one swipe) | ||
Error Rate | Less than 0.5% (JSE Test card) | ||
Temperature | Storage : -30°C to +70°C Operating : -20°C to +70°C | ||
Humidity | Storage : 0% to 95% RH Operating : 20% to 90% RH |
