Buy Mikrotik Router CCR1016-12G
Brief Product Description
CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per
second – Cloud Core Router is your best choice.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years.
Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just
a few of the vast number of features supported by RouterOS.

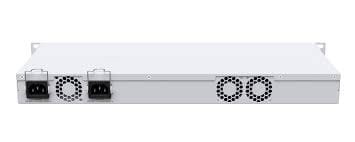

The device is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two
SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power
supply and 1U rackmount case.
Mikrotik CCR1016-12G Routerboard-Cloud Core Router is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of
packets per second – Cloud Core Router is your best choice. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding,
real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
Specifications
Details | |
---|---|
Product code | CCR1016-12G |
Architecture | TILE |
CPU | TLR4-01680 |
CPU core count | 16 |
CPU nominal frequency | 1.2 GHz |
Dimensions | 355x145x44mm |
License level | 6 |
Operating System | RouterOS v6 (64bit) |
Size of RAM | 2 GB |
Storage size | 512 MB |
Storage type | NAND |
Tested ambient temperature | -20C .. +60C |
Powering
Details | |
---|---|
Max Power consumption | 48W |
Number of AC inputs | 1 |
AC input range | 100-240 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 12 |
Peripherals
Details | |
---|---|
Serial port | RS232 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | microUSB type AB |
Max USB current (A) | 1 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
