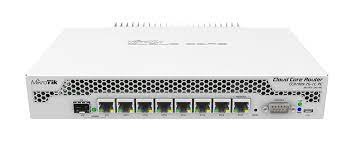

Buy mikroTik CCR1009-7G-1C-1S+PC Cloud Core Router with Passive Cooling from Hubtechshop, Nairobi Kenya
MikroTik CCR1009-7G-1C-1S PC Cloud Core Router with Passive Cooling has 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSU.
Quick Product Specification
- CPU: Tilera Tile-Gx8009 CPU (9-cores, 1Ghz per core)
- Memory: Built in 2GB RAM
- Ethernet: 7x Gigabit Ethernet ports
- SFP: 1x SFP cage; 1x SFP+ cage
- OS: MikroTik RouterOS, Level6 license
Specifications
| DETAILS | |
|---|---|
| Product code | CCR1009-7G-1C-1S+ |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 444x175x47mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20C .. +60C |
Powering
| DETAILS | |
|---|---|
| Max Power consumption | 34W |
| PoE in | Passive PoE |
| PoE in input Voltage | 15-57 V |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (PoE-IN) |
Ethernet
| DETAILS | |
|---|---|
| 10/100/1000 Ethernet ports | 7 |
| Ethernet Combo ports | 1 |
Fiber
| DETAILS | |
|---|---|
| SFP+ ports | 1 |
Peripherals
| DETAILS | |
|---|---|
| Number of SIM slots | 1 Smart card (Mini SIM) |
| Serial port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other
| DETAILS | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Key Features:
- Powerful Processing: The CCR1009-7G-1C-1S+PC is equipped with a multi-core Tilera CPU, providing exceptional processing power to handle complex networking tasks with ease. Experience lag-free performance for your network applications.
- Advanced Networking Capabilities: This Cloud Core Router is designed for advanced networking scenarios. Benefit from dynamic routing protocols, VPN support, firewall capabilities, and more, making it suitable for a wide range of professional applications.
- Seven Gigabit Ethernet Ports: With seven Gigabit Ethernet ports, the CCR1009-7G-1C-1S+PC ensures high-speed connectivity for wired devices, allowing for seamless data transfer and efficient network operations.
- SFP and Combo Port: The router features an SFP port for fiber connectivity, enabling high-speed data transmission over long distances. The combo port adds versatility, allowing you to choose between additional Ethernet or SFP connectivity.
