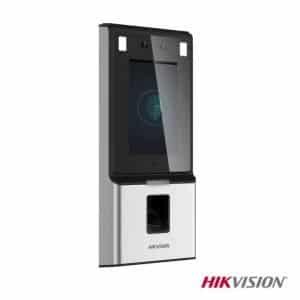

Hikvision DS-K1T606 Face Recognition Terminal

DS-K1T606 series Face Recognition Terminal adopts deep learning algorithm, which helps to recognize the face faster and more accurate. It also supports multiple authentication modes: face picture, card, fingerprint etc. Face Recognition Terminal helps managing the door opening/closing, which can apply to the scenarios of buildings, businesses, financial industries, and other important areas.

5″ LCD touch screen, face recognition terminal, fingerprint scanner, 2MP wide-angle dual lens, 480×800 resolution, Stand-alone operation, Up to 3000 face pictures, Deep learning algorithm, <1s face recognition time, 99% accuracy rate, 1x RS-485 interfa

• Quick Start Guide of DS-K1T606
• Datasheet of DS-K1T606
• User Manual of DS-K1T606

Three face recognition terminal models are available, each one uniquely and flexibly designed for a wealth of applications and scenarios:
•    Wall-Mounted Face Recognition Terminal – DS-K1T604MF & DS-K1T606MF
•    Base- or Wall-Mounted Face Recognition Terminal – DS-K1T605MF
•    Face Recognition Component for Access Turnstile – DS-K5603-Z

Hikvision has embedded Deep-Learning algorithms into its face recognition terminals, providing fewer transmission delays and a reduced load on backend components. As a result, the terminals have a high success rate – the face-capture rate can hit 99% accuracy at less than 0.5 seconds.

Key product features;

• Wall mounting
• 5-inch LCD touchscreen to display operation interface, advertisement, etc.
• 2 MP wide-angle lens
• WDR
• Face recognition distance: 0.3 m to 1 m
• High-performance processor with a deep learning algorithm
• Max. 3000 face pictures and Max. 5000 fingerprints Note: Only the device containing fingerprint module supports fingerprint related functions.
• Multiple authentication modes: authentication by comparing face picture, by swiping card and comparing face picture, by custom mode, etc.
• Accurate and fast face recognition function. The face recognition duration is no more than 1s per person and the face recognition accuracy rate is more than 99%
• Applies face picture data and card data to the device via TCP/IP or uploading them to the device via the USB flash drive
• Stand-alone operation
