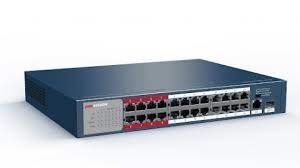

Hikvision DS-3E0326P-E 24 ports 100Mbps Unmanaged PoE Switch

KSh32,000.00 + VAT

24 × 100 Mbps PoE ports, and 2 × 1000 Mbps combos.
IEEE 802.3at/af standard.
IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
High priority ports.
8-core power supply.
Upstream port link aggregation.
Up to 250 m transmission distance.
6 KV surge protection for PoE ports.
PoE power management.
100 Mbps network access.
Wire-speed forwarding and non-blocking design.
Store-and-forward switching.
Solid high-strength metal shell.

SKU: TS15969 Categories: HIKVISION, Security Systems

Description
Reviews (0)

Hikvision DS-3E0326P-E 24 ports 100Mbps Unmanaged PoE Switch

Overview

Hikvision DS-3E0326P-E 24 ports 100Mbps is a 10/100 Mbps unmanaged switch that requires no configuration and provides 24 PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones,

Network Ports:		26
PoE Port:		24, 10/100Mbps RJ45 ports
Uplink Port:		2, 1000M Combo Port

Standard
Network Protocol:		IEEE802.3,802.3u,802.3x, 802.3af, 802.3at

Performance
Switching Capacity:		8.8Gbps
Max. Forwarding Rate:		6.55Mpps
High Priority Ports:		Ports 1-8
Forwarding Mode:		Store-and-forward
MAC Address Table:		4k
Flow Control:		IEEE802.3x full duplex

Power Over Ethernet
PoE Standard:		IEEE802.3af, IEEE802.3at
PoE Power Budget:		370W
Working Mode:		Extend On:250m,10M,CAT 5e Extend Off:100m

General
Power Supply:		100-240V AC, 50/60Hz
Power Consumption:		≤440W
Surge Protection:		4KV
Working Temperature:		Temperature: 0℃-40℃
Working Humidity:		Humidity: 10%-90% , non-condensing
Storage Temperature:		Temperature: -40℃-70℃
Storage Humidity:		Humidity: 5%-90% , non-condensing
Weight:		4.29kg
Dimension:		440mm285mm43mm

Accessories
SFP modules (Optional):		HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km

Hikvision DS-3E0326P-E 24 ports 100Mbps Key Features:

24 PoE Ports:
- Equipped with 24 Power over Ethernet (PoE) ports, allowing the simultaneous connection of multiple PoE-enabled devices.
Fast Ethernet (100Mbps):
- Each port supports Fast Ethernet (100Mbps) data transfer, ensuring reliable and efficient network connectivity for connected devices.
Unmanaged Operation:
- Operates as an unmanaged switch, providing a plug-and-play solution without the need for complex configurations.
PoE Standard Support:
- Complies with IEEE 802.3af/at standards, providing power to PoE-compatible devices over a single Ethernet cable.
Total PoE Power Budget:
- Specifies the total power budget available for all PoE ports, allowing for proper power allocation to connected devices.
Automatic Detection and Power Allocation:
- Features automatic detection and power allocation for PoE devices, simplifying the installation process.
Compact and Rack-Mountable Design:
- The compact form factor allows for easy placement on desktops or rack-mounting, optimizing space utilization in various environments.
