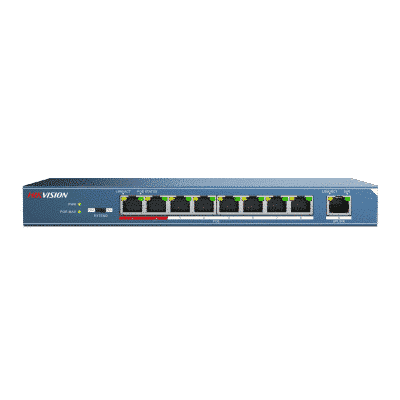

Hikvision DS-3E0109P-E 8 ports 100Mbps Unmanaged PoE Switch

Name: Hikvision DS-3E0109P-E 8 ports 100Mbps Unmanaged PoE Switch
SKU: TS15968
Availability: InStock

KSh23,000.00 + VAT

8 × 100 Mbps PoE ports, and 1 × 100 Mbps Ethernet port.

IEEE 802.3at/af standard.

IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.

High priority ports.

8-core power supply.

Up to 250 m transmission distance.

6 KV surge protection for PoE ports.

PoE power management.

100 Mbps network access.

Wire-speed forwarding and non-blocking design.

Store-and-forward switching.

Solid high-strength metal shell.

Reliable fan-free design.

SKU: TS15968 Categories: HIKVISION, Security Systems

Description
Reviews (0)

Hikvision DS-3E0109P-E 8 ports 100Mbps Unmanaged PoE Switch

DS-3E0109P-E is a 10/100 Mbps unmanaged switch that requires no configuration and provides eight PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc.

Network Ports:		9
PoE Port:		8, 10/100Mbps RJ45 ports
Uplink Port:		1, 100M Ethernet Port

Standard
Network Protocol:		IEEE802.3,802.3u,802.3x, 802.3af, 802.3at

Performance
Switching Capacity:		1.8Gbps
Max. Forwarding Rate:		1.34Mpps
High Priority Ports:		Ports 1-2
Forwarding Mode:		Store-and-forward
MAC Address Table:		4k
Flow Control:		IEEE802.3x full duplex

Power Over Ethernet
PoE Standard:		IEEE802.3af, IEEE802.3at
PoE Power Budget:		123W
Working Mode:		Extend On:250m,10M,CAT 5e Extend Off:100m

General
Power Supply:		51V DC, 2.5A
Power Consumption:		≤127W
Surge Protection:		4KV
Working Temperature:		Temperature: 0℃-40℃
Working Humidity:		Humidity: 10%-90% , non-condensing
Storage Temperature:		Temperature: -40℃-70℃
Storage Humidity:		Humidity: 5%-90% , non-condensing
Weight:		0.57kg
Dimension:		235mm103mm27mm

Key Features:

8 PoE Ports:
- Equipped with 8 Power over Ethernet (PoE) ports, providing both data connectivity and power to compatible devices over a single Ethernet cable.
Fast Ethernet (100Mbps):
- Each port supports Fast Ethernet (100Mbps) data transfer, ensuring a reliable and efficient network connection for connected devices.
Unmanaged Operation:
- Operates as an unmanaged switch, making it suitable for users who prefer a plug-and-play solution without the need for complex configurations.
PoE Standard Support:
- Complies with IEEE 802.3af/at standards, allowing the switch to deliver power to PoE-compatible devices without the need for additional power sources.
Total PoE Power Budget:
- Specifies the total power budget available for all PoE ports, ensuring proper allocation of power to connected devices.
Automatic Detection and Power Allocation:
- Features automatic detection and power allocation for PoE devices, simplifying the installation process.
Compact and Rack-Mountable Design:
- Compact form factor allows for easy placement on desktops or rack-mounting, optimizing space utilization in various environments.
LED Indicators:
- Each port typically features LED indicators to provide visual status information on power, link/activity, and PoE status.
Fanless Design:
- Utilizes a fanless design for silent operation, making it suitable for deployment in noise-sensitive environments.
Metal Housing:
- The switch may have a metal housing for durability and improved heat dissipation.
Plug-and-Play Installation:
- Offers a hassle-free installation process with plug-and-play functionality, allowing users to quickly set up and expand their network.
Compatibility:
- Compatible with a wide range of network devices, including IP cameras, wireless access points, and IP phones.
