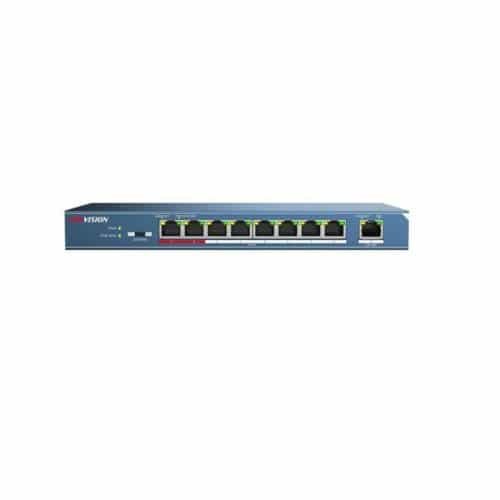

Buy Hikvision DS-3E0109P-E 8 Port Unmanaged PoE Switch
The Hikvision DS-3E0109P-E 8 Port Unmanaged PoE Switch is a 8-Port 10/100 Mb/s PoE-Compliant Unmanaged Network Switch which gives you the ability to deploy devices on your network that do not have access to power lines or outlets. By utilizing PoE (Power Over Ethernet), both power and data is transmitted over the connection. With up to 30W per port, you can network and power devices such as IP cameras, VoIP phones, IP telephones, wireless access points, and more.
Hikvision DS-3E0109P-E 8 ports 100Mbps Unmanaged PoE Switch is a 10/100 Mbps unmanaged switch that requires no configuration and provides eight PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc.
Power and connect your network devices effortlessly with the Hikvision DS-3E0109P-E 8 Port Unmanaged PoE Switch, an 8-Port Unmanaged PoE Switch. This switch is designed to simplify the deployment of Power over Ethernet (PoE) devices, providing both data connectivity and power to compatible devices such as IP cameras, VoIP phones, and access points.
Network Ports: | 9 | |
PoE Port: | 8, 10/100Mbps RJ45 ports | |
Uplink Port: | 1, 100M Ethernet Port |
Standard | ||
---|---|---|
Network Protocol: | IEEE802.3,802.3u,802.3x, 802.3af, 802.3at |
Performance | ||
---|---|---|
Switching Capacity: | 1.8Gbps | |
Max. Forwarding Rate: | 1.34Mpps | |
High Priority Ports: | Ports 1-2 | |
Forwarding Mode: | Store-and-forward | |
MAC Address Table: | 4k | |
Flow Control: | IEEE802.3x full duplex |
Power Over Ethernet | ||
---|---|---|
PoE Standard: | IEEE802.3af, IEEE802.3at | |
PoE Power Budget: | 123W | |
Working Mode: | Extend On:250m,10M,CAT 5e Extend Off:100m |
General | ||
---|---|---|
Power Supply: | 51V DC, 2.5A | |
Power Consumption: | ≤127W | |
Surge Protection: | 4KV | |
Working Temperature: | Temperature: 0℃-40℃ | |
Working Humidity: | Humidity: 10%-90% , non-condensing | |
Storage Temperature: | Temperature: -40℃-70℃ | |
Storage Humidity: | Humidity: 5%-90% , non-condensing | |
Weight: | 0.57kg | |
Dimension: | 235mm*103mm*27mm |
