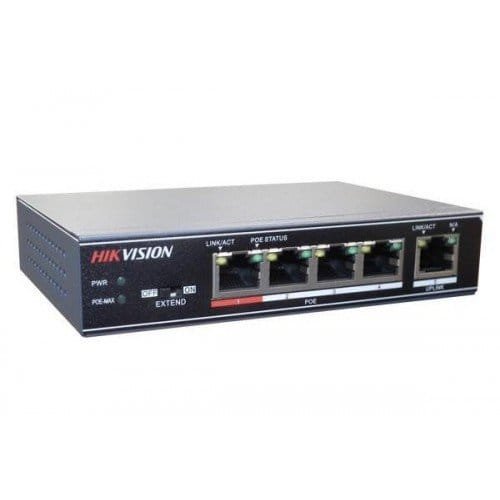

Hikvision DS-3E0105P-E 4 ports 100Mbps Unmanaged PoE Switch

Hikvision 4 ports 100Mbps Unmanaged DS-3E0105P-E PoE Switch requires no configuration and provides 4 PoE (Power over Ethernet) ports. The 4 port PoE switch can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs).

Hikvision 4 port PoE switch enables power to be transmitted along one single cable allowing you to expand your network to where there are no power lines or outlets,  DS-3E0105P-E PoE Switch can be used on devices such as IP Cameras or IP Phones, etc.

Hikvision 4 ports PoE switch Specification

• IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
• 4 x 10/100Mbps Auto-MDIX PoEports
• Provides up to 30 watts per PoE port
• PoEpower budget 58W
• 4 kV surge protection for PoE ports
• IEEE 802.3x flow control support
• Plug-and-play installation
• 1 Gbps switching fabric
• 448 Kbits RAM Data Buffer
• 1K MAC address entries
• Sturdy metal enclosure

Key Features:

1. 4 PoE Ports:
   • Equipped with 4 Power over Ethernet (PoE) ports, enabling the simultaneous connection of PoE-enabled devices.
2. Fast Ethernet (100Mbps):
   • Each port supports Fast Ethernet (100Mbps) data transfer, ensuring reliable and efficient network connectivity for connected devices.
3. Unmanaged Operation:
   • Operates as an unmanaged switch, providing a straightforward plug-and-play solution without the need for complex configurations.
4. PoE Standard Support:
   • Complies with IEEE 802.3af/at standards, allowing the switch to deliver power to PoE-compatible devices over a single Ethernet cable.
5. Total PoE Power Budget:
   • Specifies the total power budget available for all PoE ports, allowing for proper power allocation to connected devices.
6. Automatic Detection and Power Allocation:
   • Features automatic detection and power allocation for PoE devices, simplifying the installation process.
7. Compact and Desktop Design:
   • The compact form factor allows for easy placement on desktops or other flat surfaces, making it suitable for small-scale deployments.
8. LED Indicators:
   • Each port typically features LED indicators to provide visual status information on power, link/activity, and PoE status.
9. Fanless Design:
   • Utilizes a fanless design for silent operation, making it suitable for deployment in noise-sensitive environments.
