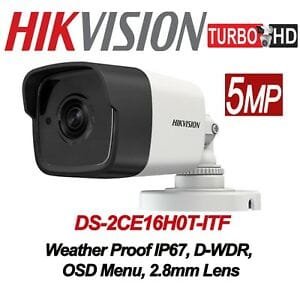

HIKVISION 5 MP Bullet Camera DS-2CE16H0T-ITF Specs
Effective Pixels:2560 (H) × 1944 (V)
Shutter Time:1/25(1/30) s to 1/50,000 s
Lens Mount:M12
Adjustment Range:Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°
Day& Night:IR cut filter with auto switch
Video Frame Rate:2560 × 1944 @ 20fps
HD Video Output:1 Analog HD output
Synchronization:Internal Synchronization
Menu
D/N Mode:Auto / Color / B/W
White Balance:Auto/MWB
BLC:Support
Language:English
General
Operating Conditions:-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:12 VDC±25%
Weather Proof:IP67
IR Range:Up to 20m
Communication :Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension:58 mm × 61 mm × 163 mm (2.28″ × 2.40″ × 6.42″)
Weight:Approx. 335 g (0.74 lb.)

Analog bullet camera DS-2CE16H0T-ITF supports 4 different video outputs – TVI/AHD/CVI/CVBS – you can switch between them using button on the camera. It is suitable as cheap replacement for old analog cameras. You can utilize HD video output later when you purchase appropriate DVR.

5MPx sensor is equipped with 3.6mm fixed lens. Field of view is 80.1°, IR illumination up to 20m. The camera is powered by 12V DC voltage and its consumption is only max. 4.3W. It meets IP67 certification for outdoor use.

Technical parameters

Camera

Lens type:Fixed
Lens [mm]:3,6 (fixed)
Illumination:IR
Illumination range [m]:20
Viewing Angle [°]:80
Day/night mode:IR cut filter
Minimum illumination [Lux]:0,01


Resolution:5MP
Max. resolution [pixels]:2560 x 1944

Connectors and Interfaces

HD-TVI output:Yes
Analog output:Yes

Power

Power type:DC connector
Max. power consumption [W]:4,3
Power via connector/terminal:12V DC

Physical characteristics

Protection class:IP67
Purpose:Outdoor
Buttons:Switch mode
Operating temperature [°C]:-40 up to 60
Weight [g]:340
Width [mm]:58
Height [mm]:61
Depth [mm]:163

Software

Supported standards:TVI, CVI, AHD, CVBS
OSD menu:Yes
