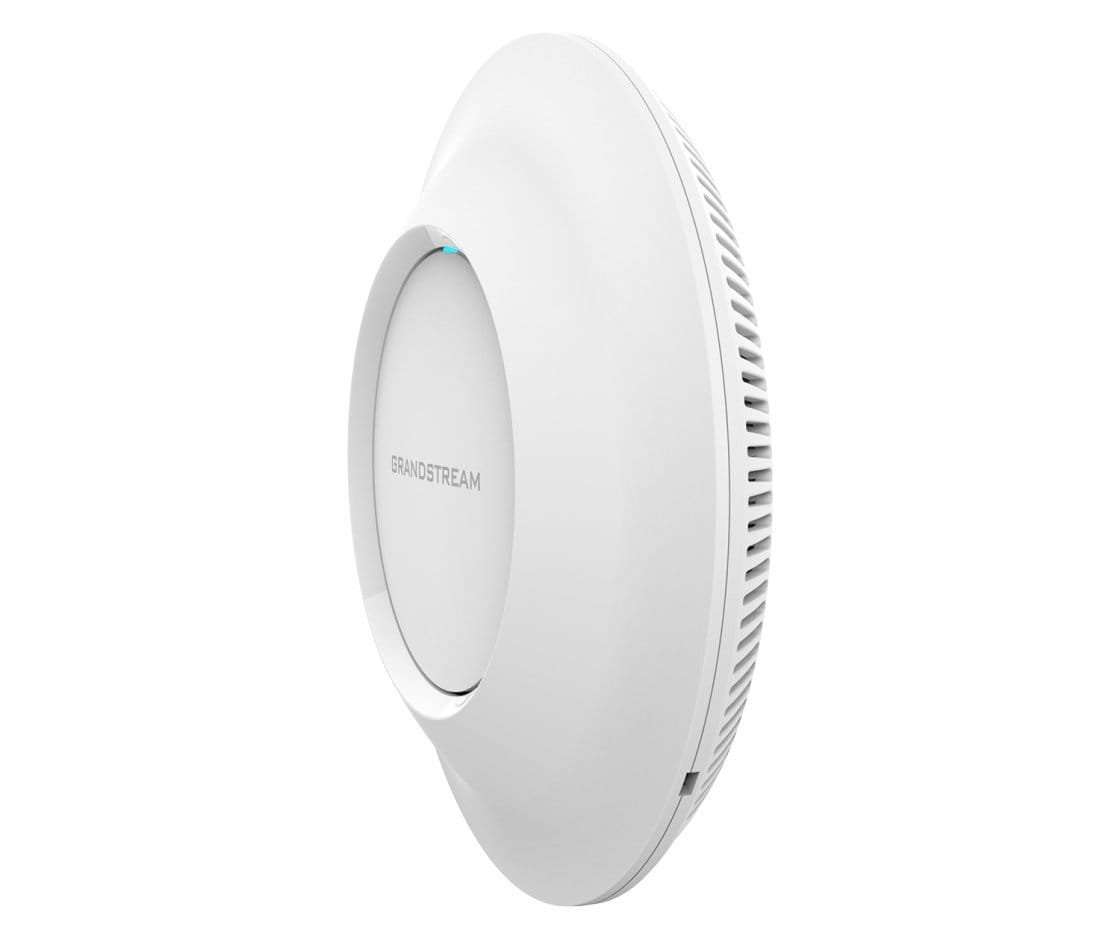

Grandstream GWN7600 Wave 2 Access Point Hubtech Shop.
Grandstream GWN7610 is a high-performance 802.11ac wireless access point for various small to medium-sized businesses. Also, multiple floor offices, commercial locations, and branch offices.
GWN7600 Wave 2 Access Point offers dual-band 3×3:3 MIMO technology and a sophisticated antenna design delivering maximum network throughput and expanded Wi-Fi covering range. To ensure easy installation & management,
Grandstream GWN7610 uses a “controller-less” distributed network management design where the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 50 GWN7610s independently without needing a separate controller hardware/software and without a single point-of-failure.
Grandstream GWN7610 wireless access point can be paired with any third party router as well as Grandstream’s GWN series routers. Supporting advanced QoS, low-latency real-time applications, 250+ client devices per AP as well as dual Gigabit network ports with PoE/PoE+,
The Grandstream GWN7610 turns to be an ideal wireless access point for large and small wireless network deployments.

Grandstream GWN7610 wireless access point Specifications
WiFi Standards | |
• | IEEE 802.11 a/b/g/n/ac |
Antennas | |
• | 2x 2.4 GHz, gain 3 dBi, internal antenna |
• | 2x 5 GHz, gain 3 dBi, internal antenna |
Frequency Bands | |
• | 2.4GHz radio: 2400 – 24835GHz |
• | 5GHz radio: 5150 – 5250GHz, 5725 – 5850GHz |
WiFi Security | |
• | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES) |
Coverage Range | |
• | Up to 541 ft. (165 meters) *coverage range can vary based on environment |
SSID’s | |
• | 16 SSID per radio |
Concurrent Clients | |
• | 450+ |
Network Interfaces | |
• | 2x autosensing 10/100/1000Base-T Ethernet Ports |
Auxiliary Ports | |
• | 1x USB 2.0 port, 1x Reset Button, 1x Kensington Lock |
Mounting | |
• | Indoor wall mount or ceiling mount, kits included |
Network Management | |
• | Embedded controller in GWN7600 allows it to auto-discover, auto-provision and manage up to 30 GWN7600s in a network |
Power | |
• | DC Input: 24VDC / 1A |
• | Power over Ethernet 802.3af/802.3at compliant |
• | Maximum Power Consumption: 13.8W |
Environmental | |
• | Operation: 0° to 40° C |
• | Storage: 10° to 60° C |
• | Humidity: 10% o 90% Non-condensing |
Physical | |
• | Unit Dimension: 205.3 x 205.3 x 45.9mm |
• | Unit Weight: 526g |
• | Unit + Mounting Kit Dimension: 205.3 x 205.3 x 53.9mm |
• | Unit + Mounting Kit Weight: 610g |
Grandstream GWN7600 Wave 2 Access Point
GWN7600 Wave 2 Access Point
Grandstream Wave 2 Access Point
Grandstream Access Point
