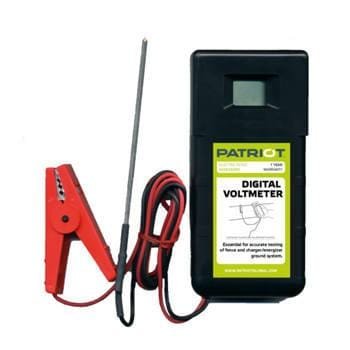

Electric fence digital voltmeter.

Electric Fence Digital Volt Meter Electric Fence Tester For Charger Electric Fence Energizer 9.9KV

• Touch the short probe at the top of the meter to the charger post or wire to get a voltage reading
• Keep one on hand for regular fence line maintenance
• Withstands cold weather, Durable, Waterproof, Accurate
• Measures voltage on any metal wire, poly wire or rope or poly tape

A short in your electric fence occurs when the power escapes to the ground. This can be caused by a broken underground cable, broken wire or insulator,

a loose connection, or something touching the fence, such excessive vegetation. – The Digital Voltmeter can help you locate the source of a short by

measuring the voltage on the fence line.

An electric fence digital voltmeter is a specialized instrument used to measure and display the voltage levels in an electric fence system.

It provides an accurate reading of the voltage level, typically displayed digitally on the device’s screen. The voltage reading is usually displayed

on a clear and easy-to-read LCD screen. Electric fences are commonly used for livestock containment, perimeter security, and wildlife deterrence.

Monitoring the voltage in an electric fence is essential to ensure its proper operation, effectiveness, and safety.

Electric fence digital voltmeters are used by farmers, ranchers, security professionals, and wildlife management personnel to ensure the proper

functioning of electric fence systems and to troubleshoot issues when they arise. It is important to have safety features sign to protect the user from electrical shocks.

How to use Electric fence digital voltmeter

• Attach it to the fence line, moving it laterally to get a good contact, and place the probe in the ground. You will see a reading on the screen – on a good electric fence line this should be in excess of 6,000 volts.
• If the voltage is just slightly below normal – say 5,000 volts – then you probably have a small fault caused by light vegetation, for instance. However, if the reading is substantially lower, then a major fault exists.
• To find this fault, move along the fence line, taking readings every 100 metres or so. As a rule of thumb, the voltage will drop roughly 100 volts every 100 metres as you head in the direction of the fault, and will then level out once you pass the fault.
• If the fault is not obvious, you should systematically isolate areas of your electic fence using cut-out switches. Once you have located the problem area, you may have to isolate individual wires to pinpoint the problem.
• Electric fence digital voltmeter
