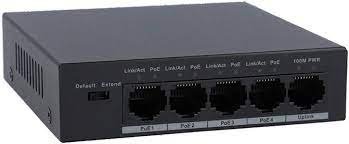

Buy Dahua 4 Port POE PFS3005-4P-58 from Hubtechshop, Nairobi Kenya
Dahua 4 Port POE PFS3005-4P-58 is a reliable and efficient PoE switch, perfect for powering and connecting PoE-enabled devices in smaller network setups. Its compact design, sufficient PoE power budget, and ease of use make it a practical choice for small office networks, IP surveillance systems, or any environment where PoE is needed for a few devices.
Two-layer PoE Ethernet switch
> MAC auto study and aging, MAC address list capacity is 1K
> Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
> Default Mode: The device works as a general switch and all ports support 10/100Mbps auto-negotiation.
> Extend Mode: VLAN isolation is enabled. Ports 1-4 will be isolated respectively (10Mbps auto-negotiation), but they can communicate with the
Uplink port. Besides, the transmission distance of power and network data is up to 250m.
Technical Specification | |
Model | DH-PFS3005-4P-58 |
Ethernet Port | 1*10/100 Base-T4*10/100 Base-T (PoE power supply) |
PoE Power Consumption | Each power ≤30W, Total≤58W |
PoE Protocol | IEEE802.3af, IEEE802.3at |
Switching Capacity | 1Gbps |
Packet Forwarding Rate | 744Kpps |
Packet Buffer Memory | 448Kb |
MAC Table Size | 1K |
Flow Control | Enable |
Application Humidity | 10%~90% |
Power | Default DC51V/1.25A power adapter |
Lightning Protection | Common Mode 2KVDifferential Mode 1KV |
Working Temperature | -10°C~50°C |
Weight | 259g |
Dimension(W×D×H) | 100mm×100mm×26mm |
Power and connect your devices efficiently with the Dahua 4 Port POE Switch (PFS3005-4P-58), a reliable Power over Ethernet (PoE) solution designed to simplify your network setup and provide power to compatible devices.
Key Features:
- 4 Port PoE: Power up to 4 PoE-enabled devices, such as IP cameras, access points, or other PoE-compatible devices, using this switch without the need for additional power sources.
- PoE+ Support: The switch supports PoE+ (802.3at) to deliver higher power to connected devices, ensuring compatibility with a wide range of PoE-enabled equipment and allowing for versatile deployment options.
- Gigabit Ethernet Ports: Benefit from high-speed data transfer rates with Gigabit Ethernet ports, allowing for fast and reliable data transmission between devices connected to the switch.
- 58W Power Budget: The switch provides a 58W power budget to distribute power efficiently among connected devices. This ensures that each connected PoE device receives the necessary power for optimal performance.
- Plug-and-Play Installation: Enjoy a hassle-free setup with plug-and-play installation. Simply connect your devices to the switch, and it will automatically detect and provide power to PoE-compatible devices.
- Compact and Sturdy Design: The compact design of the switch makes it suitable for various installation environments. Its sturdy build ensures durability, making it ideal for both indoor and outdoor use.
- Extended Reach: The PoE switch enables power and data transmission over a single Ethernet cable, simplifying cable management and extending the reach of your network devices.
