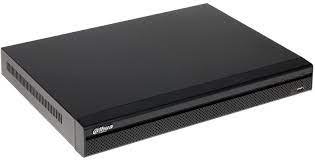

Dahua 1080P XVR5232AN-S2 32 Channel DVR

KSh35,000.00 + VAT

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: TS16316 Categories: Dahua, Security Systems

Description
Reviews (0)

Dahua 1080P XVR5232AN-S2 32 Channel DVR

Dahua XVR as the perfect solution to upgrade existing video surveillance systems.

Smart H.254+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras

High Definition Camera Input

The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.

Long Distance Transmission
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

HDCVI/AHD/TVI/CVBS/IP Auto-detect
The XVR can auto recognize the signal of front-camera without any setng. It makes operaton more friendly and convenient.

Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-eﬀectve and convenient for installaton

Intelligent Video System (IVS)
With built-in intelligent video analytcs, the XVR has the ability to detect and analyze moving objects for improved video surveillance.

Face Detecton
It is a type technology being used in a variety of applicatons that search or identfy individuals which show front cameras.

Smart Search
This functon helps you get more moton detect video during a short tme through drawing a region when playback.

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

32 Channel, BNC

HDCVI Camera

4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

4MP, 1080P@25/30, 720P@25/30fps

TVI Camera

4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

32 Channel, each channel up to 5MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.264+/H.264

Resolution

4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)Sub steram: D1/CIF/QCIF(1~15fps)

Bit Rate

1Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Display

Interface

1 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

1/4/8/9/16/25/36

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

2 SATA Port, up to 8TB capacity

eSATA

N/A

Auxiliary Interface

USB

1 USB 2.0 , 1 USB 3.0

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

DC12V/5A

Power Consumption

<20W (Without HDD)

Construction

Dimensions

1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)

Net Weight

2.35kg (5.2 lb) (without HDD)

Gross Weight

3.2kg (7.05lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1

Also see;

Dahua DHI-ASA1222E Biometric Standalone Time Attendance Recorder

Dahua 1MP 720P DH-HAC-HDW1100EMP IR HDCVI dome camera

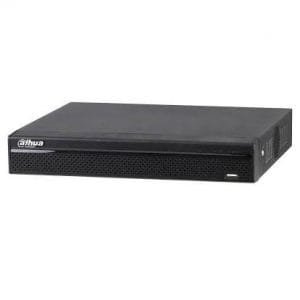

The Dahua 1080P DH-XVR5108HS-X 8 Channel Penta-brid DVR
