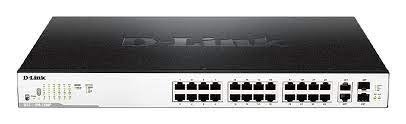

D-Link DGS-1100-26MP 24 Ports PoE+ Smart Gigabit Switch
KSh78,000.00 + VAT
Buy DGS-1100 Series Smart Managed 26-Port Gigabit PoE Switch in Kenya
D-Link DGS-1100-26MP 24 Ports PoE+ Smart Gigabit Switch.
D-Link DGS-1100-26MP is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards, high power budgets and 6 kV surge protection (MP/MPP models) make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your networking requirements. Get Dlink DGS-1100-26MPP 24 Ports 10/100/1000Mbps PoE++ Smart Gigabit Switch from Hubtechshop.
D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet, the DGS-1100 Series consume less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.
Easy to Deploy
The DGS-1100 Series supports an intuitive client-based utility (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based management interface. The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be
controlled from any network-connected PC.
Auto Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports Surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.
Advanced Features
The DGS-1100 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC list for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
PoE Support
The DGS-1100-08P/24P/10MP/10MPP/26MP/26MPP provide support for Power over Ethernet (PoE), reducing deployment time for IP cameras, VoIP phones, and access points. Dedicated power adapters are no longer required, as the DGS-1100-24P/10MP/26MP comply with IEEE 802.3af and 802.3at PoE standards and provide up to 30 watts per port. The DGS-1100-08P complies with the 802.3af standard and provides up to 15.4 watts per port, while the DGS-1100-10MPP/26MPP comply with 802.3af, 802.3at, 802.3bt draft and UPoE and can supply up to 75 watts on a selected number of ports.
General features:
Hardware Version
• B1
Size
• 19-inch Desktop/Rackmount Size, 1U Height
Number of Ports
• 24 10/100/1000 Mbps PoE
• 2 Combo 1000 Mbps
Port Functions
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3ab compliant
• IEEE 802.3af/802.3at compliant
• IEEE 802.3bt draft/UPoE (DGS-1100-10MPP/26MPP only)
• IEEE 802.3x Flow Control supports full-duplex mode
• Supports manual/auto MDI/MDIX configuration
• Auto-negotiation
• Supports half/full-duplex operation
• IEEE 802.3az compliant
• Up to 6 kV surge protection per port
Switching Capacity
• 52 Gbps
Maximum Forwarding Rate
• 38.69 Mpps
MAC Address Table Size
• 16K Entries
Packet Buffer
• 1.5 MBytes
Flash Memory
• 16 MBytes
PoE Standard
• IEEE 802.3af/802.3at/802.3bt draft/UPoE
PoE Capable Ports
• Ports 1 to 24
PoE Power Budget
• 518 watts (30 watts max. per PoE port for ports 1 to 24, 75 watts max. for ports 21 to 24)
Standby Mode Power Consumption
• 15.19 watts
Maximum Power Consumption
• 539 watts (PoE on)
• 23.2 watts (PoE off)
Power Input
• 100 to 240 V AC
• 50 to 60 Hz Internal Power Supply
MTBF
• 268, 289 hours
Acoustics
• 56 dB(A)
Heat Dissipation
• 2079.35 BTU/hr
Weight
• 3.9 kg
Dimensions
• 440 x 290 x 44 mm
Ventilation
• 2 x Fan
Operating Temperature
-5 to 50 °C
Storage Temperature
-40 to 70 °C
Operating Humidity
0% to 95% non-condensing
Storage Humidity
0% to 95% non-condensing
EMI
FCC/IC, CE, VCCI, BSMI, CCC
Safety
cUL, UL, LVD, CB, CCC, BSMI
VLAN
• Port-based VLAN
• 802.1Q tagged VLAN
• Auto Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
• Supports 128 static VLAN groups
• Max. 4094 VIDs
L2 Features
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
• IGMP v1/v2/v3 awareness Snooping
• Supports 64 Groups
• IGMP Snooping Querier
• 802.3ad Link Aggregation:
• DGS-1100-10MP: Support 5 groups per device and 8 ports per group
• Ethernet Ring Protection Switching
• G.8032 ERPS
• Loopback Detection
• Cable Diagnostics
• LLDP
• Port Mirroring
• One-to-One
• Many-to-One
• Statistics
• Tx Ok
• Tx Error
• Rx Ok
• Rx Error
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• L2 Multicast
• MLD Snooping
Quality of Service (QoS)
• 802.1p Quality of Service
• 4 queues per port
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Port-based Bandwidth Control (Rate Limiting)
• Ingress: 8Kbps
• Egress: 64Kbps
Security
• D-Link Safeguard
• Traffic Segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS Attack Prevention
• SSL
Management
• Web-based GUI (Supports IPv4/IPv6)
• Client-based Utility (D-Link Network Assistant Utility)
Green Technology
• Power Saving by
• Link Status
• LED Shut-Off
• Port Shut-Off
• System Hibernation
• Compliant with IEEE 802.3az Energy Efficient Ethernet
MIB/RFC Standards
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1213 MIB II
• RFC1493 Bridage MIB
• RFC1907 SNMPv2 MIB
• RFC1215 MIB Traps Convention
• RFC2233 Interface Group MIB
• RFC2665 Ether-like MIB
• RFC4363 IEEE 802.1p MIB
• ZoneDefense MIB
• Private MIB
• RFC951 BootP client
• RFC1542 BootP/DHCP client
• RFC2236 IGMP Snooping
16 port poe switch kenya
8 port switch price in kenya
16 port switch price in kenya
tp link 24 port switch price
cisco 48 port switch price
D-Link DGS-1100-26MP -26-Port Gigabit Smart Managed Rackmount PoE+ Switch including 2 Gigabit RJ45/SFP Combo Ports
Advanced L2 Switching Features
IGMP Snooping
Bandwidth Control
802.1Q VLAN for traffic segregation
Port-based VLAN
802.1p QoS
Surveillance VLAN and Voice VLAN
Loopback Detection with auto-disable
Cable Diagnostics
Management Features
- Web-based GUI
- D-Link Network Assistant Utility
- SmartConsole Utility
DGS-1100-26MP
Dlink 24 Ports 10/100/1000Mbps PoE+ Smart Gigabit Switch with 2 combos 1000Base-T/ SFP ports, 370W PoE power budget
DGS-1100 Series Smart Managed 26-Port Gigabit PoE Switch
Including 2 Gigabit/SFP Combo Ports, 370W PoE Budget
Also see;
D-Link DES-1210-28P Web Smart 24-Port Fast PoE Ethernet Switch
D-Link DES-1210-28P 24-Port 10/100 Smart PoE Switch
The D-Link DES-1210-28 24 Port Smart Switch with 2 Gigabit Ports and 2 Combo SFP Gigabit Uplinks
