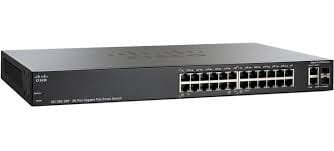

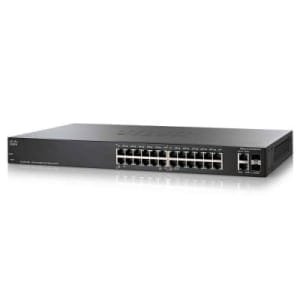

Cisco SG200-26P Gigabit Ethernet Smart Switch, 24 POE
Original price was: KSh70,000.00.KSh65,000.00Current price is: KSh65,000.00. + VAT
Buy Cisco SG200-26P Gigabit Ethernet Smart Switch, 24 POE from Hubtechshop, Nairobi Kenya
Buy Cisco SG200-26P Gigabit Ethernet Smart Switch, 24 POE
Cisco SG200-26P Gigabit Ethernet Smart Switch delivers the basic security and quality of service (QoS) features needed
to share network resources and connect network devices.
The switch has native support for IPv6 as well as the previous IPv4 standard ensuring your network is ready for the next generation of technologies.
With energy-efficient technology, it optimizes power use to reduce energy costs without compromising performance.
The Cisco SG200-26P 26-Port 10/100/1000 Gigabit PoE Smart Switch from Cisco lets you achieve business-class network security and performance
at an affordable price. It provides an ideal solution when you require a reliable solution to share network resources and connect computers, printers and servers.
The SG200-26P 26-Port 10/100/1000 Gigabit PoE Smart Switch from Cisco lets you achieve business-class network security and performance at an
affordable price. It provides an ideal solution when you require a reliable solution to share network resources and connect computers, printers and servers.
Cisco SG200-26P Gigabit Ethernet Smart Switch Specs
| Performance | Capacity in Mpps (64-byte packets): 38.69Switching Capacity in Gbps: 52.0 |
| Layer 2 Switching | Spanning Tree Protocol: Standard 802.1d STP support Fast convergence using 802.1w (Rapid Spanning Tree), enabled by defaultPort Grouping: Support for IEEE 802.3ad Link Aggregation Control Protocol • Up to 8 groups • Up to 4 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN: Support for up to 128 VLANs simultaneously (out of 4096 VLAN IDs) Port-based and 802.1Q tag-based VLANsVoice VLAN: Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoSInternet Group Management Protocol Versions 1 and 2 Snooping: Internet Group Management Protocol limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groupsHead-of-Line (HOL) Blocking: Head-of-line blocking |
| Security | IEEE 802.1X (Authenticator Role): RADIUS authentication and accounting, MD5 hashPort Security: Locks MAC addresses to ports and limits the number of learned MAC addresses Storm Control: Broadcast, multicast and unknown unicast |
| Quality of Service | Priority Levels: 4 hardware queuesScheduling: Strict priority and weighted round-robin Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)Class of Service: Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)Rate Limiting: Ingress policer, per VLAN and per port |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 2618 |
| IPv6 |
|
| Management | Web User Interface: Built-in switch configuration utility for easy browser-based device configuration (HTTP) Supports configuration, system dashboard, system maintenance and monitoringRemote Monitoring: Embedded RMON software agent supports one RMON group (statistics) for enhanced traffic management, monitoring and analysis IPv4 and IPv6 Dual Stack: Coexistence of both protocol stacks to ease migration Firmware Upgrade: Web browser upgrade (HTTP) and TFTP Port Mirroring: Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe Up to 4 source ports can be mirrored to one destination port. A single session is supported VLAN Mirroring: Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe Up to 4 source VLANs can be mirrored to one destination port. A single session is supported Dynamic Host Configuration Protocol (Options 66 and 67): Dynamic Host Configuration Protocol options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download) Text-Editable Config Files: Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment Smartports: Simplified configuration of QoS and security capabilities Cloud Services: Support for FindIT Network Discovery Utility Localization: Localization of GUI and documentation into multiple languages Other Management: HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog |
| Power Efficiency | Energy Detect: Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down Active mode is resumed without loss of any packets when the switch detects the link is back upCable Length Detection: Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10 m |
| General Features | Jumbo Frames: Frame sizes up to 10 KB supported on Gigabit interfacesMAC Table: Up to 8000 MAC addresses |
| Discovery | Link Layer Discovery Protocol (802.1ab) with LLDP-MED Extensions: Link Layer Discovery Protocol allows the switch to advertise its identification, configuration and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phonesCisco Discovery Protocol: The switch advertises itself using the Cisco Discovery Protocol |
| Power Over Ethernet | Power Dedicated to PoE: 100WNumber of Ports That Support PoE: 12 |
| Power Consumption | Power Savings Mode: Short reach plus Energy DetectPower Consumption Worst Case: 110V/0.591A/36.8W 220V/0.381A/37.5WHeat Dissipation (BTU/hr): 97.9 |
| Ports | Total system ports: 26 Gigabit Ethernet 24 Gigabit Ethernet RJ-45 ports 2 Gigabit Ethernet combo mini-GBIC ports* (RJ-45 + SFP) |
| Buttons | Reset button |
| Cabling Type | Unshielded twisted pair Category 5 or better for 10BASE-T/100BASE-TX; Unshielded twisted pair Category 5 Ethernet or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 16 MB |
| CPU | 128 MB memory |
| Packet Buffer Memory | 4 MB |
| Power Supply | 100V-240V, 12V/2.5A, 50-60 HZ 100V-240V, 50V/2A, 50-60 HZ |
| Fan | 1 |
| Acoustic Noise | 40.2 dB |
| MTBF | @ 40°C (hours): 218,842 |
| Certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Environmental Requirements | Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: -4 to 158°F (-20 to 70°C) Operating Humidity: 10 to 90%, relative, non condensing Storage Humidity: 10 to 90%, relative, non condensing |
| Minimum Requirements | Web Browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later Category 5 Ethernet network cable TCP/IP, network adapter and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network |
| Dimensions (DxWxH) | 10.1 x 17.35 x 1.73″ (257 x 440 x 44 mm) |
| Weight | 8.09 lb (3.67 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 10.6 lb |
| Box Dimensions (LxWxH) | 21.5 x 15.0 x 4.0″ |
It’s easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty.
- Get the high availability and performance you need to support vital business applications while reducing downtime.
- Advanced Features: Control network traffic with advanced features such as quality of service (QoS), Layer 3 static routing and IPv6 support.
- Intuitive browser-based tools, mass deployment capabilities, and consistent features across all models simplify setup and configuration.
- Switches optimize power usage for energy efficiency without compromising performance.
- Important Note: Only 12 ports support POE.
The Cisco SG200-26P provides the ideal combination of affordability, reliability and performance in a switch designed specifically for small businesses.
