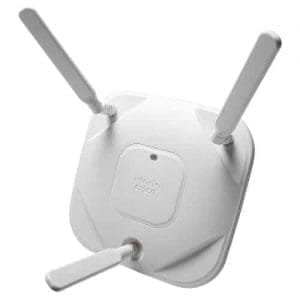

Cisco Aironet 1602e 300 Mbps WAP AIR-SAP1602E-A-K9
Original price was: KSh55,000.00.KSh53,800.00Current price is: KSh53,800.00. + VAT
Buy Cisco Aironet 1602e IEEE 802.11n 300 Mbps Wireless Access Point AIR-SAP1602E-A-K9from Hubtechshop, Nairobi Kenya
Buy Cisco Aironet 1602e IEEE 802.11n 300 Mbps Wireless Access Point AIR-SAP1602E-A-K9
Cisco Aironet 1602e 300 Mbps is an entry-level 802.11n-based access point designed to address the wireless connectivity needs of small and medium-sized enterprise networks. It provides functionalities such as CleanAir
Express for better cover through spectrum intelligence, and Clientlink 2.0 for entry level networks that have a mixed client base. The Aironet 1600 features
802.11n-based 3×3 Multiple-Input Multiple-Output (MIMO) technology with two spatial streams.
The Aironet 1600 provides six times the throughput of existing 802.11a/g networks. With an entry-level path to 802.11n migration, it can add capacity to the
network for future growth for expanding applications and bandwidth. Chipsets and optimized radios deliver mobility experience with 802.11n with 3×3 MIMO
technology, Radio resource management, CleanAir Express, Cisco ClientLink 2.0 technology, Cisco VideoStream technology, and Cisco BandSelect technology.
Cisco Aironet 1602e 300 Mbps WAP AIR-SAP1602E-A-K9 Specs
802.11n 3 x 3 Multiple-Input Multiple-Output (MIMO) with two spatial streams
Maximal Ratio Combining (MRC)
20 and 40 MHz channels
PHY data rates up to 300 Mb/sPacket Aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS) (Bin 5)
Cyclic Shift Diversity (CSD) supportFrequency Band and 20 MHz Operating Channels
A Regulatory Domain:
2.412 to 2.462 GHz, 11 channels
5.180 to 5.320 GHz, 8 channels5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz)
5.745 to 5.825 GHz, 5 channelsMaximum Total Transmit Power 2.4 GHz: 802.11b/802.11g/802.11n (HT20)
22 dBm (3 antennas enabled)5 GHz: 802.11a
22 dBm (3 antennas enabled)802.11n non-HT duplicate mode
5 GHz: 802.11n (HT20) and (HT40)
22 dBm (3 antennas enabled)Available Total Transmit Power Settings
2.4 GHz and 5 GHz
Enabled Antennas: 1
17/14/11/8/5/2 dBmEnabled Antennas: 2
20/17/14/11/8/5 dBm Enabled Antennas: 2
22/19/16/13/10/7 dBmIntegrated Antenna 2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360°
5 GHz, gain 4.0 dBi, horizontal beamwidth 360°External Antennas Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
Cisco offers 802.11n antennas delivering optimal coverage for a variety of deployment scenarios (sold separately)Interfaces
10/100/1000BASE-T autosensing (RJ-45)
Management console port (RJ-45)System Memory 256 MB DRAM
32 MB flashPower Requirements Input: AP1600: 44 to 57 VDC
Power Supply and Power Injector: 100 to 240 VAC, 50 to 60 HzPowering Options
802.3af Ethernet switch
Cisco AP1600 power injectors (AIR-PWRINJ4, AIR-PWRINJ5)
Cisco AP1600 local power supply (AIR-PWR-B)Power Draw AP1600: 12.95 W Software Cisco Unified Wireless Network Software
Cisco IOS Software ReleaseIndicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors Environmental
Operating Temperature: -4 to 122°F / -20 to 50°C
Storage Temperature: -22 to 158°F / -30 to 70°COperating Humidity: 10 to 90% non-condensing
Operating Altitude: 104°F / -40°C; 9,843 ft / 3,000 m
Non-Operating Altitude: -13°F / -25°C 15,000 ft / 4,572 mCompliance
Safety: UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1Radio Approvals:
FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)The ARIB-STD T71 (Japan)
AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EECIEEE Standard:
IEEE 802.11a/b/g, IEEE 802.11n, the IEEE 802.11h, IEEE 802.11dSecurity:
802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
802.1X
Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)EAP Types:
Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
PEAPv1 or AP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)Multimedia
Wi-Fi Multimedia (WMM)
Others
FCC Bulletin OET-65C
RSS-102Dimensions (L x W x H) 8.7 x 8.7 x 1.8″ (22.1 x 22.1 x 4.7 cm) Weight 1.9 lb (0.9 kg)
