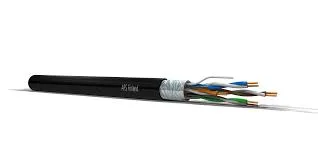

Buy APS Cat 6A cable F/UTP 4 pairs AWG23/1 Outdoor Cable from Hubtechshop, Nairobi Kenya.

EIA/TIA 568-C.2, ISO/IEC 11801, EN 50288-10, IEC 61156‐5, EN 50173-1
Gigabit Ethernet 10GBASE-T, Ethernet 10 BASE-T, Fast Ethernet 100 BASE-T, Fast Ethernet 100 BASE-TX, 155 Mbit ATM, 625 Mbit ATM, 1.2 Gbit ATM
IEEE 802.3af Power over Ethernet (PoE) , IEEE 802.3at Power over Ethernet Plus (PoE+)

Installation Features

Store at  -0 to +70 °C
Install at  -0 to +50 °C
Operate at : -10 to +60 °C
Bend minimum : 10 times O.D.
Bend minimum : 10 times O.D.
Pull maximum : 40N

Design

Conductor : solid bare copper AWG23 (0.57mm ± 0.005 mm)
Insulation : polyethylene 1.15 ± 0.02 mm
Pair : 2 insulated conductors stranded together
Colour code : 1.White/blue  2.White/orange  3. White/green  4.White/brown
Assembling : no 4 pairs assembled together around a PE central cross
Wrapping :  polyester tape
Screen :  aluminium foil
Outer jacket : black PE material
Marking : APS Finland – ww/yy – F/UTP 4x2x23AWG Category 6A – PE OUDOOR – Extended Frequency 500MHz 100Ohm – ISO/IEC 11801 – /lot + meter

Environmental properties and Fire Performances

UV resistant : UL 1581

Electrical characteristics

Resistance of the conductor @ 20°C : ≤ 95 Ω/km
Mutual Capacitance : 56 pF/m (cond/cond)
Capacitance unbalance : 3300 pF/km (p/p @ 1KHz)
Average characteristic impedance : 100 ± 15 Ω @ 100MHz
Velocity of propagation (NVP) : 70%

Specifications:

• Cable Type: Cat 6A F/UTP (Foiled/Unshielded Twisted Pair)
• Pairs: 4 pairs
• Conductor Type: Solid copper
• Conductor Size: AWG23/1
• Outdoor Rating: Suitable for outdoor installations
• Shielding: Foil shield for enhanced electromagnetic interference (EMI) protection
• Performance: Supports high-speed data transmission up to Cat 6A standards
• Length: Available in various lengths to suit your installation needs
• Color: Outer jacket color may vary (commonly blue or black)

Applications:

• Outdoor network installations
• Industrial environments
• High-performance data transmission
• Ethernet, IP cameras, and other networking applications
