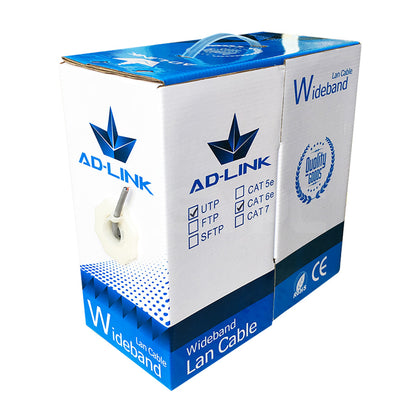

Buy AD-LINK 305M CAT6 UTP  Description.

The Ad-link 305m CAT6 UTP Cable is a cable mostly used for networking purposes, particularly for data transmission in local area networks (LANs) and other network applications. This cable is for high performance data transfer and designed for fast and reliable connection to your home or office. One advantage with this Ad-link cable is that it is backward compatible with earlier cable standards like CAT5 and CAT5e. This means you can use CAT6 cables in networks that have devices using older Ethernet standards.

The cable is ideal for situations where there are demanding applications in which high bandwidth and minimal signal loss are required. This is due to their ability to support data transfer speeds of up to 10 gigabits per second (10 Gbps) over short distances. They are suitable for connecting computers, servers, switches, routers, and other networking devices within a structured cabling system.

Key product details

Inner Conductor thickness   :   0.56mm Pure Copper
Conductor size                         :  23AWG
Conductor Material                :  BC
No. of Conductor                    :  4P
Insulator Material                  :  HDPE
Jacket                                        :  ROSH PVC
Shield                                        :  Unshielded twisted pairs
Filler                                          :  PE CROSS
Insulation Thickness             :  0.2mm
Jacket Thickness                    :  Optional
Stretching Resistance            :  (max) 400N
Impedance                               :  100±15%î© at 1~250MHz
Pc Resistance                           :  10000Mî©.km
Working Capacitance             :  5.4nf/100m
Insulation Resistance            :   72%
Operating Temperature        :  ~40Â ºC – +70 Â ºC
PVC Jacket Color                   :  Optional
