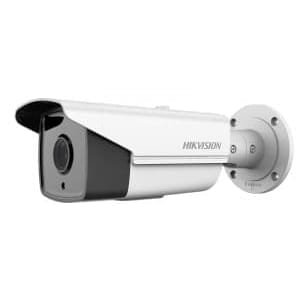

Buy Hik Vision DS-2CD2T42WD – 4MP EXIR Network Bullet Camera
The Hikvision DS-2CD2T42WD-I5 4MP EXIR Bullet Network ip Camera features a 1/3″ CMOS sensor for up to 4MP resolution at 20 fps. The camera can
also achieve 1080p and 720p resolutions at 30 fps for video footage in real time. The camera’s 4mm lens is surrounded by IR LEDs, enabling it to operate
in complete darkness at up to 164′. Wide dynamic range, backlight compensation, and 3D digital noise reduction all offer clear images in ambient lighting
for use in a wide range of settings. Additionally, you can adjust the saturation, brightness, contrast, and sharpness settings for configuring the camera based
on your environment. When motion, intrusion, line crossing, tampering, a network disconnect, an IP address conflict, or a storage exception is detected,
the camera will trigger an alarm, immediately notifying you to the event. The device supports PoE technology for a minimum of wires during setup,
and the camera is IP66-rated for use outdoors.
Quick Product Features
- 1/3” Progressive Scan CMOS
- Up to 4 megapixel resolution
- 120dB Wide Dynamic Range
- 3D DNR
- lEXIR high performance LEDs
- Up to 30/50/80 meters IR range
- 12V DC±25% & PoE(802.3af Class3)
- Support H.264+
- IP67
Camera | ||
---|---|---|
Image Sensor: | 1/3″ Progressive Scan CMOS | |
Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F2.0,AGC ON), 0 Lux with IR | |
Shutter time: | 1/3 s ~ 1/100,000 s | |
Slow shutter: | Support | |
Lens: | (-I3: 4,6mm; -I5: 4,6,12mm; -I8: 4,6,12,16mm) @F2.0 angle of view: 83°(4mm), 55.4°(6mm), 24.7°(12mm), 19.1°(16mm) | |
Lens Mount: | M12 | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR |
Compression Standard | ||
---|---|---|
Video Compression: | H.264/MJPEG/H.264+ | |
H.264 code profile: | Main Profile | |
Video bit rate: | 32Kbps~16Mbps |
Image | ||
---|---|---|
Max. Image Resolution: | 2688 × 1520 | |
Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) | |
Sub Stream: | 50Hz: 25fps(352×288),25fps(640×360) 60Hz: 30fps(352×240),30fps(640×360) | |
Image Enhancement: | BLC/3D DNR/ROI | |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
Network | ||
---|---|---|
Network Storage: | NAS (Support NFS,SMB/CIFS) | |
Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering | |
System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
Interface | ||
---|---|---|
Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port |
General | ||
---|---|---|
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) | |
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
Power Consumption: | I3: Max. 6W; I5: Max. 7.5W; I8: Max. 10.5W | |
Weather Proof: | IP67 | |
IR Range: | I3: 30 meters; I5: 50 meters; I8: 80 meters | |
Dimensions: | 299.71 × 86.48 × 85.11(11.8’’ × 3.4’’ × 3.35’’) | |
Weight: | 1200g (2.65 lbs) |
