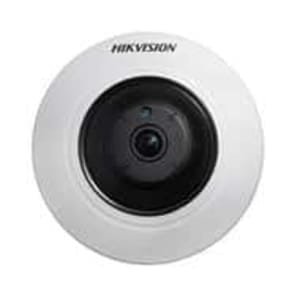

4MP Compact Fisheye Network Camera DS-2CD2942F-(I)
Original price was: KSh39,000.00.KSh37,000.00Current price is: KSh37,000.00. + VAT
Buy 4MP Compact Fisheye Network Camera DS-2CD2942F-(I) from Hubtechshop, Nairobi Kenya
Quick Specifications
l 1/3” Progressive Scan CMOS
l Up to 4 megapixel resolution
l Fisheye & PTZ view
l 3D DNR
l -I: IR range approx. 8 meters
l -W: Support Wi-Fi, support WPS configuration with one touch
l -S: audio & alarm I/O
l Support 128G on-board storage
l 12 VDC ± 10% / PoE
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Buy 4MP Compact Fisheye Network Camera DS-2CD2942F-(I)
The Hikvision DS-2CD2942F-(I) 4MP Compact Fisheye Network Camera features a 1/3″ progressive-scan CMOS sensor for up to 2560 x 1440 resolution
at 15 fps. The camera can also achieve 1920 x 1080 and 1280 x 720 resolutions at 30 fps for full HD video in real time. Equipped with a 1.6mm fisheye lens,
the camera can capture a 186° horizontal field of view for a wide coverage area. Additionally, the camera’s lens is surrounded by IR LEDs, providing up to 26′
of night vision in complete darkness. Image enhancements such as backlight compensation, white balance, and 3D DNR allow you to capture clear images in
ambient light for use in a variety of environments. A built-in audio input and output and alarm input and output enable you to conveniently expand your surveillance
setup. H.264 video compression conserves storage and bandwidth, and the camera features an integrated microSD slot that supports up to 128GB of on-site storage
for edge recording. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and PoE technology enables you to run just one wire for
both data and power, for a simple and easy setup.
4MP Compact Fisheye Network Camera DS-2CD2942F-(I) Quick Specifications
- 1/3” Progressive Scan CMOS
- lUp to 4 megapixel resolution
- Fisheye & PTZ view
- 3D DNR
- l -I: IR range approx. 8 meters
- l -W: Support Wi-Fi, support WPS configuration with one touch
- l -S: audio & alarm I/O
- l Support 128G on-board storage
- l 12 VDC ± 10% / PoE
| Camera | ||
|---|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS | |
| Min. Illumination: | Color: 0.01lux @(F1.2, AGC ON), 0.018lux @(F1.6, AGC ON), 0 lux with IR | |
| Shutter time: | 1/3 s ~ 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 1.6mm, F1.6 Angle of view: 186°(horizontal), 106°(vertical) | |
| Lens Mount: | M12 | |
| Day& Night: | Electronic (-I: IR cut filter with auto switch) | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG | |
| H.264 code profile: | Baseline Profile / Main Profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2560 × 1440 | |
| Frame Rate: | 50Hz: 12.5fps(2560 × 1440), 25fps(1920 × 1080, 1280 × 720) 60Hz: 15fps(2560 × 1440), 30fps(1920 × 1080, 1280 × 720) | |
| Image Enhancement: | BLC/3D DNR/ROI/Defog | |
| Image Settings: | Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) | |
| Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | User Authentication, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Wi-Fi Specification (-W) | ||
|---|---|---|
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth: | 20/40MHz Support | |
| Modulation Mode: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM | |
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | |
| Transmit Power: | 11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm | |
| Receive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical) | |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps | |
| Wireless Range: | 50m(depend on environment) | |
| General | ||
|---|---|---|
| Operating Conditions: | -10 °C ~ 40 °C (14 °F ~ 104 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 5.55 W | |
| IR Range: | -I: 8m | |
| Dimensions: | ?119.9 x 41.2(?4.72” × 1.62”) | |
| Weight: | 600 g (1.32 lbs) | |
| NOTE：: | “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol. | |
