-5%

2 MP Ultra Low Light Smart PTZ Camera nec0pg mo6vcf

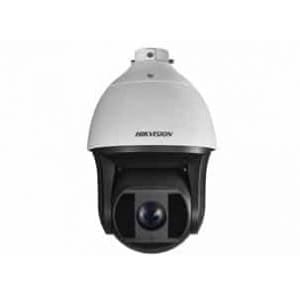

2MP Ultra-Low Light Smart PTZ Camera DS-2DF8236I-AEL

Original price was: KSh200,000.00.Current price is: KSh190,000.00. + VAT

Buy 2 MP Ultra-Low Light Smart PTZ Camera DS-2DF8236I-AEL from Hubtechshop, Nairobi Kenya

Quick Specs

1/1.9″ HD CMOS Sensor
Optical Defog
2 MP (1920 x 1080) Full HD
36x Optical Zoom
Ultra-Low Illumination
120 dB True WDR
Smart Tracking
Smart Detection
EIS (Electronic Image Stabilization)
200 Meters (650 ft) IR Range
Hi-PoE/24 VAC Power

SKU: TS16623 Categories: CCTV Suppliers and Installers in Nairobi, Kenya, HIKVISION, Security Systems

Description
Reviews (0)

Buy 2 MP Ultra-Low Light Smart PTZ Camera DS-2DF8236I-AEL

2MP Ultra-Low Light Smart PTZ Camera DS-2DF8236I-AEL is a high-performance PTZ (Pan-Tilt-Zoom) designed for surveillance applications where advanced features and high image quality are required.

2MP Ultra-Low Light Smart PTZ Camera DS-2DF8236I-AEL Quick Specs

1/1.9″ HD CMOS Sensor
Optical Defog
2 MP (1920 x 1080) Full HD
36x Optical Zoom
Ultra-Low Illumination
120 dB True WDR
Smart Tracking
Smart Detection
EIS (Electronic Image Stabilization)
200 Meters (650 ft) IR Range
Hi-PoE/24 VAC Power

mage Sensor:		1/1.9″ HD CMOS sensor
Effective Pixels:		1920(H)x1080(V)
Minimum Illumination:		F1.5, 50IRE, AGC On: Color: 0.002 lux, B/W : 0.0002 lux, 0 lux with IR
Signal System:		PAL/NTSC
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night:		ICR
Digital Zoom:		16X
Privacy Masking:		24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		5.7-205.2, 36x
Zoom Speed:		Approx.7.4s(Optical Wide-Tele)
Angle of View:		58.7-2.0 degree (Wide-Tele)
Minimum Working Distance:		10-1500mm(Wide-Tele)
Aperture Range:		F1.5~F4.5

Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
Tilt Range:		-20°~90°(Auto Flip)
Tilt Speed:		Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets per patrol
Pattern:		4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory:		Support
Park Action:		Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:		ON/OFF
Freeze Frame:		Support
Smart-tracking:		Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios
Wiper:		Optional

Infrared
IR irradiation distance:		200m
IR irradiation angle:		Adjustable by zoom

Alarm
Alarm Input:		7 Inputs
Alarm Output:		2 channel relay output, with configurable alarm actions
Alarm Actions:		Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client

Input & Output
Monitor Output:		1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input:		1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:		1 Audio output interface Line level, impedance: 600Ω

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:		50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Video Compression:		H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
ROI encoding:		Support 24 areas with adjustable levels
Audio Compression:		G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
User/Host Level:		Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:		User authentication (ID and PW), Host authentication (MAC address) IP address filtering

Client GUI
Camera Control:		Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:		Time: Week: Date, 6 formats on the Client
Client:		Support iVMS-4200
Web Browser:		IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General
RS-485 Protocols:		HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language:		English
Power Supply:		24 VAC & Hi-PoE
Power Consumption:		Max.60W
Working Temperature/Humidity:		-40°C ~ 65°C (-40°F ~ 149°F)
Protection Level:		IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Mounting:		Various mounting modes optional
Dimensions:		Φ266.6(mm)×365.2(mm)
Weight (approx.):		8kg (approx.)
Mount Option:		Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
