Summary Guide to The S-TEK Networking Toolkit

Top 10 Most Used Tools S-TEK Networking Toolkit

The S-TEK Networking Toolkit is a comprehensive set of tools designed to assist professionals in various aspects of networking, including installation, maintenance, and troubleshooting. It typically contains a variety of tools essential for network technicians and engineers to effectively manage networking infrastructure. Here’s a comprehensive overview and guide to the 50 pieces in the S-TEK Networking Toolkit:

Crimping Tool

Function:

This tool is essential for terminating network cables by attaching connectors (typically RJ45 connectors for Ethernet cables) to the cable ends.

Usage:

The crimping tool compresses the connector onto the cable securely, ensuring a proper electrical connection between the cable’s conductors and the connector’s pins.

Importance:

Without a crimping tool, it would be challenging to create reliable connections between network devices, leading to connectivity issues and network downtime.

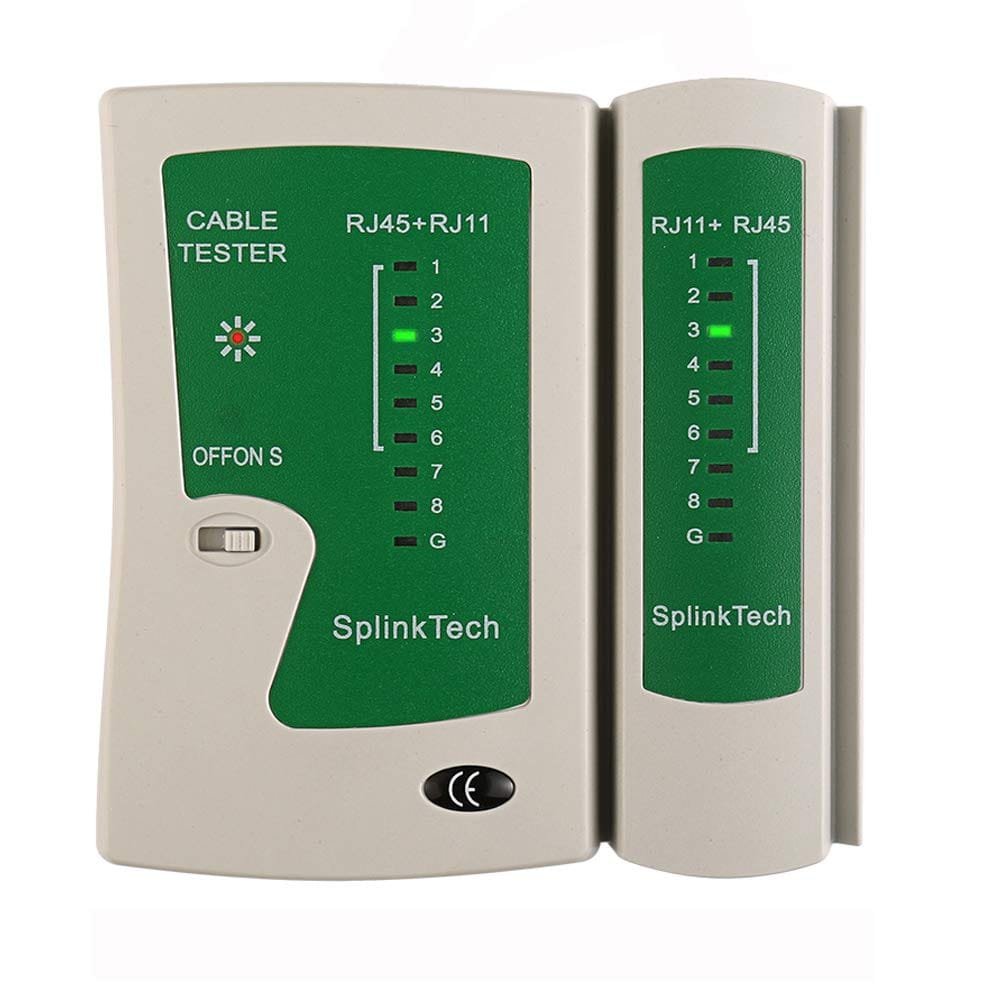

Cable Tester

Function:

A cable tester is used to verify the integrity and connectivity of network cables.

Usage:

By connecting both ends of a cable to the tester, it checks for continuity, shorts, and other common wiring issues.

Importance:

Cable testers help ensure that installed cables meet industry standards and can reliably transmit data without errors, reducing troubleshooting time and improving network performance.

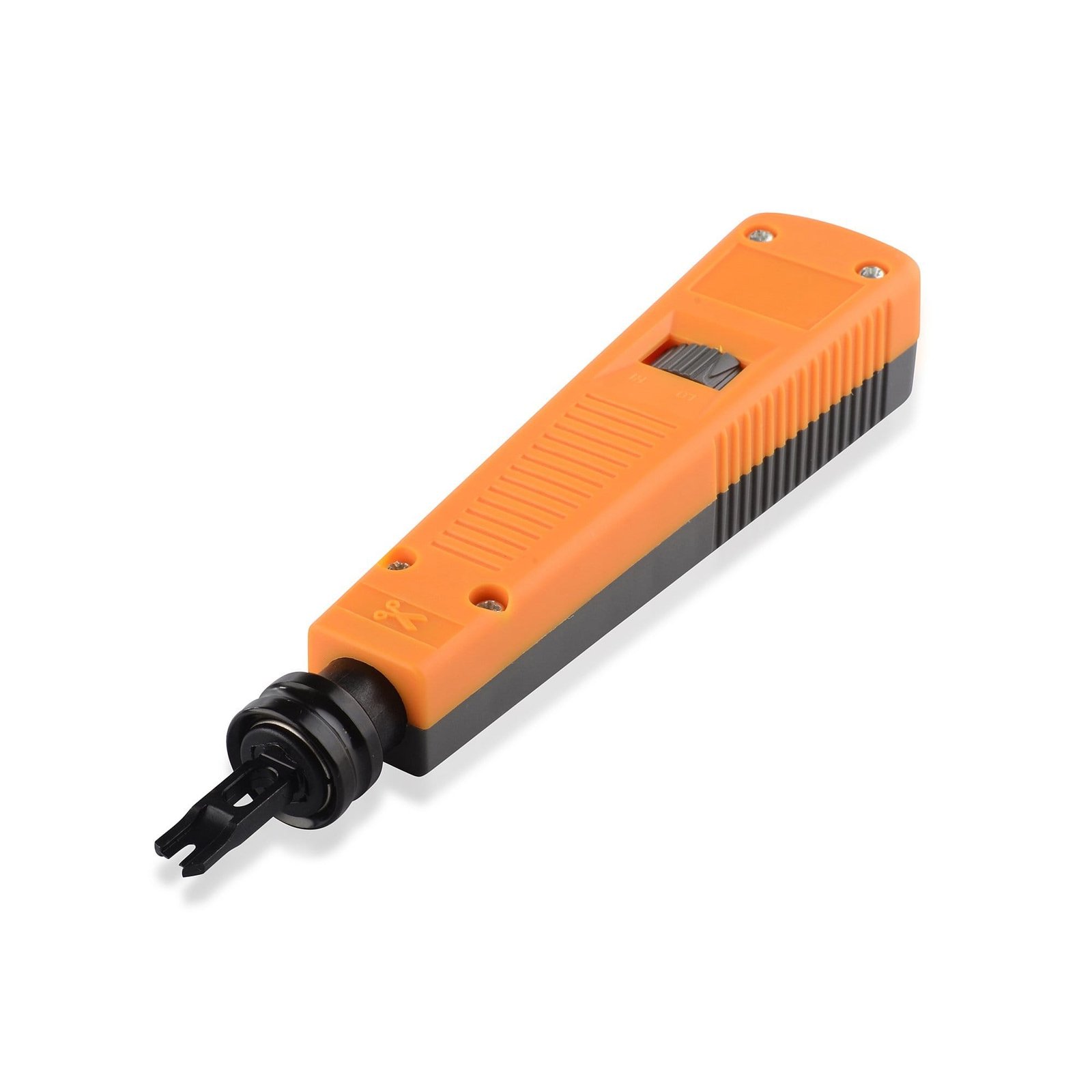

Punch Down Tool

Function:

This tool is used to terminate wires onto punch down blocks, patch panels, or keystone jacks.

Usage:

The punch down tool inserts individual wires into their respective terminals on a termination block, creating a secure connection.

Importance:

Proper termination is crucial for maintaining signal integrity and minimizing crosstalk in structured cabling systems, ensuring reliable network performance.

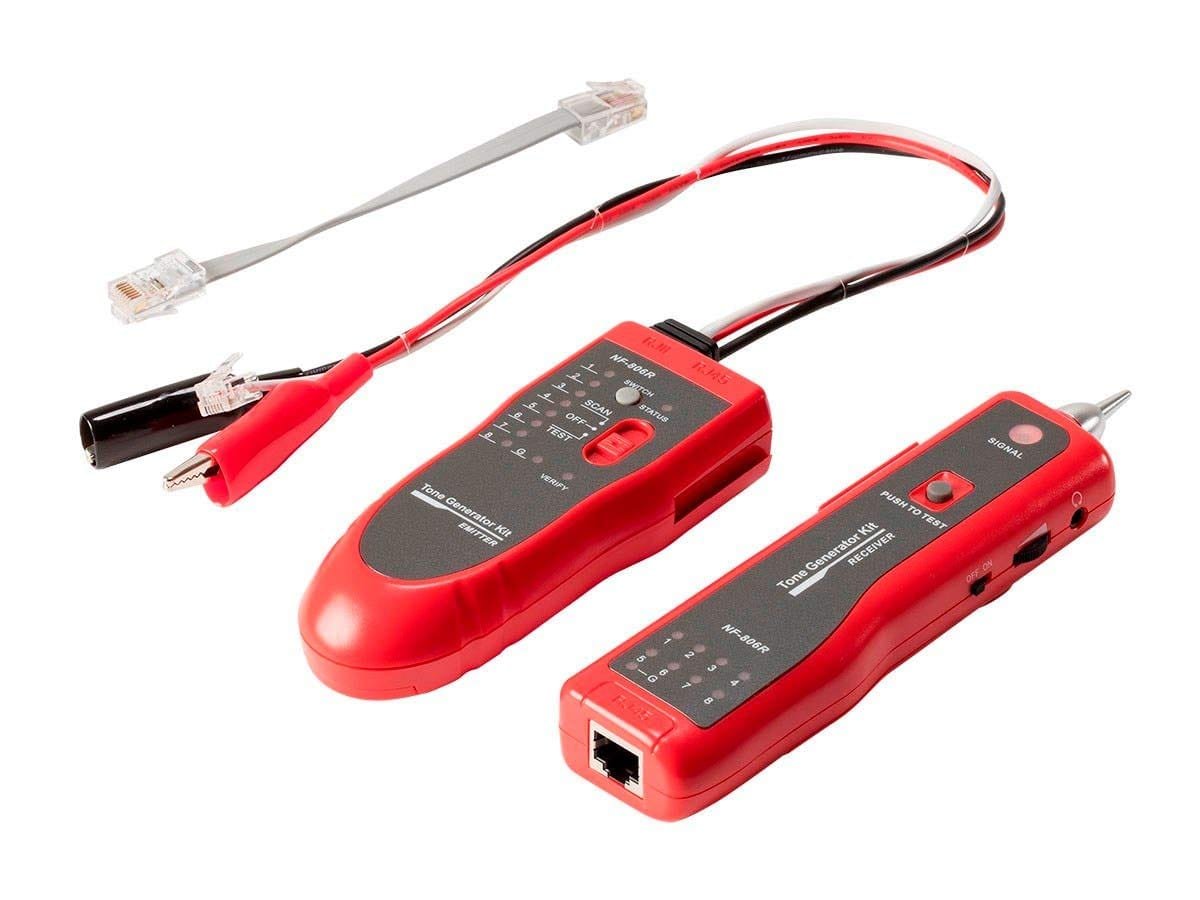

Tone Generator and Probe Kit

Function:

This kit helps trace and identify cables by sending a tone through one end of a cable and using a probe to detect the tone’s signal along the cable’s length.

Usage:

It is particularly useful for locating specific cables within a bundle or identifying the endpoints of unlabeled cables.

Importance:

The tone generator and probe kit simplifies cable tracing tasks, saving time and effort during installations, moves, adds, and changes in network infrastructure.

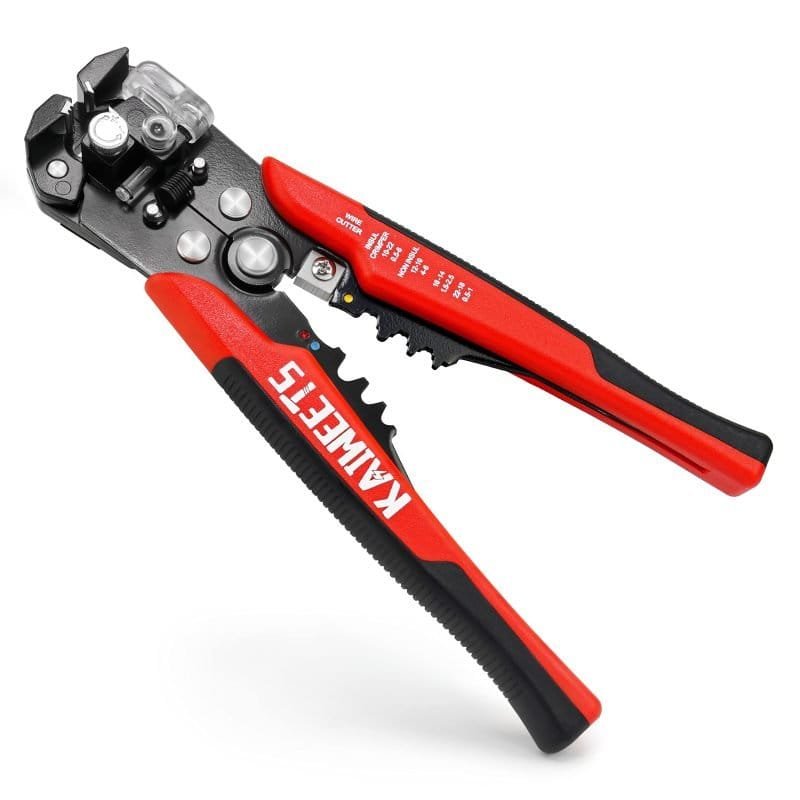

Wire Stripper

Function:

Wire strippers are used to remove the outer insulation from cables, exposing the inner conductors.

Usage:

By adjusting the cutting depth, wire strippers ensure precise removal of insulation without damaging the underlying conductors.

Importance:

Properly stripped cables ensure reliable connections when terminating connectors or punching down wires, preventing signal loss or electrical shorts.

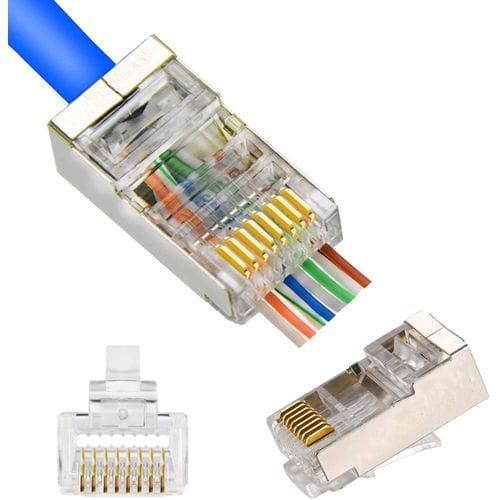

Ethernet Cable Connectors (RJ45)

Function:

RJ45 connectors are used to terminate Ethernet cables, providing a connection interface for networking devices.

Usage:

These connectors are crimped onto the ends of Ethernet cables using a crimping tool, ensuring a secure and standardized connection.

Importance:

RJ45 connectors are ubiquitous in Ethernet networks, and proper termination is essential for maintaining signal integrity and compatibility with network equipment.

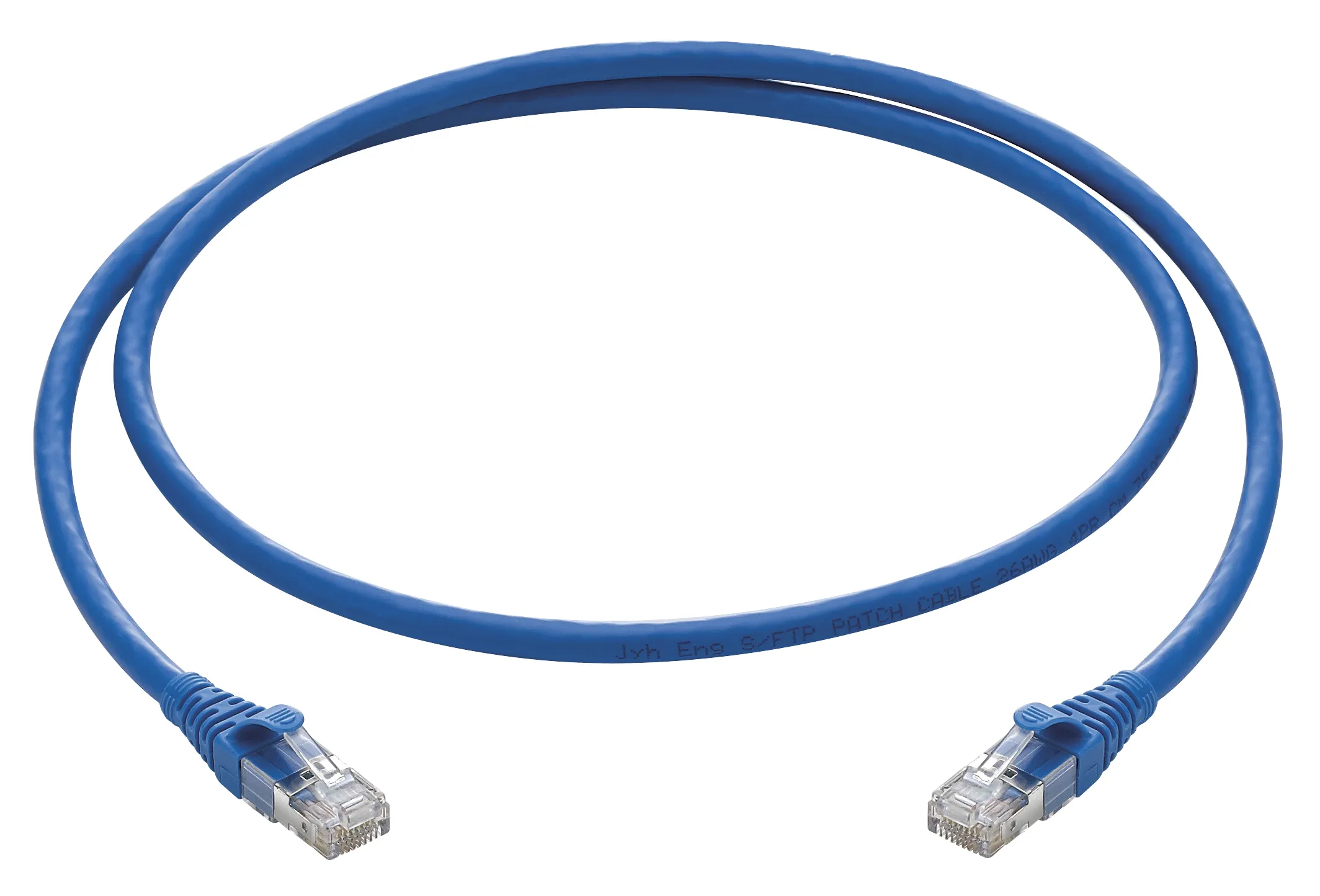

Patch Cables (Various Lengths)

Function:

Patch cables are short Ethernet cables used to connect devices within a network, such as computers, switches, and routers.

Usage:

These cables facilitate connectivity between network components in data centers, server rooms, and office environments.

Importance:

Patch cables provide the physical links that enable data transmission between network devices, allowing for efficient communication and data exchange.

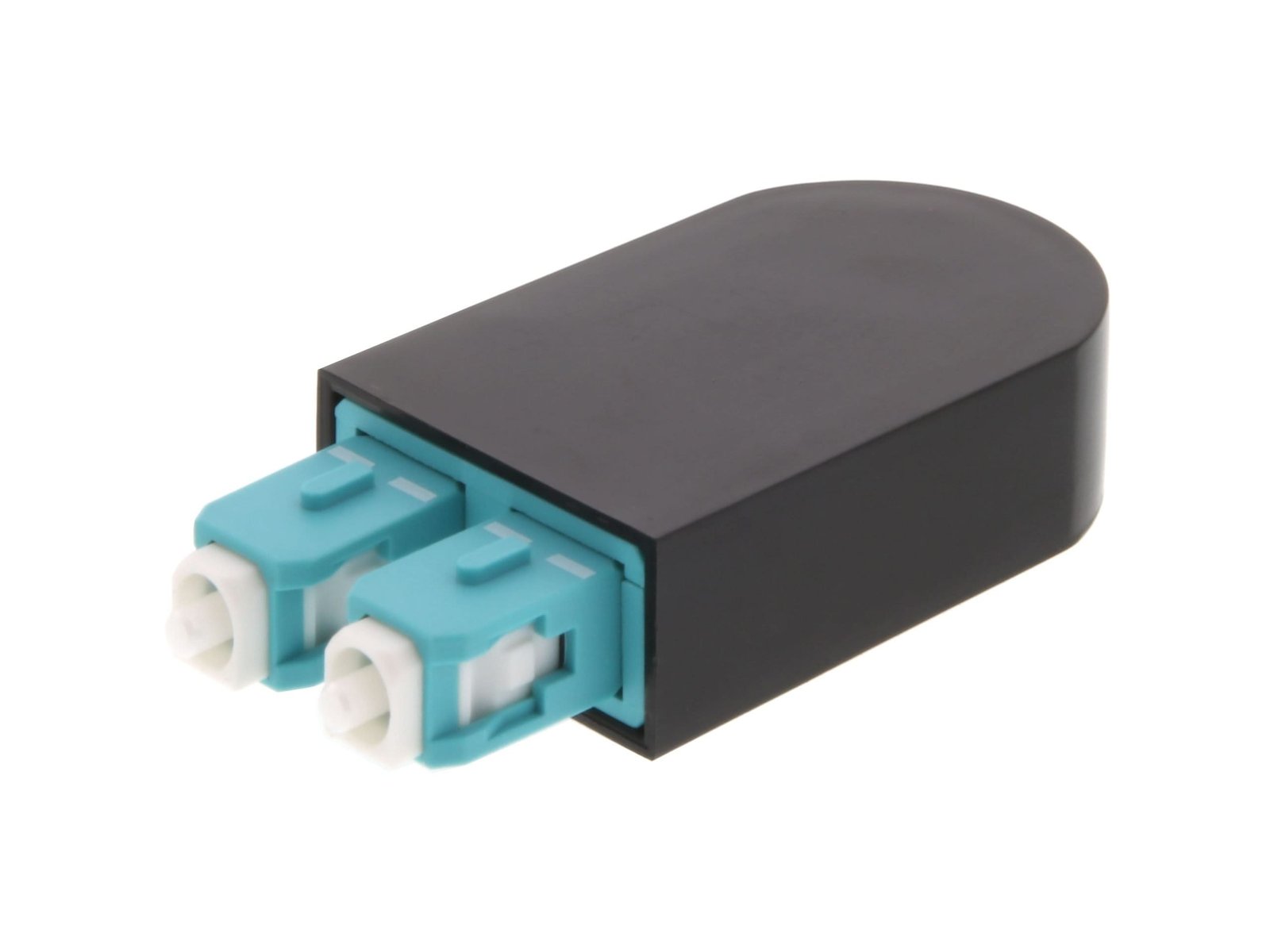

Loopback Adapter

Function:

A loopback adapter is used to test the functionality of network ports by creating a closed circuit between the transmit and receive pins.

Usage:

When plugged into a network port, the loopback adapter sends data back to the transmitting device, allowing for self-testing of the port’s functionality.

Importance:

Loopback adapters help diagnose network port issues, such as misconfigurations or hardware failures, without requiring additional network equipment or connectivity.

LAN Cable Tester

Function:

Similar to a cable tester, a LAN cable tester specifically tests Ethernet cables for continuity, shorts, and other wiring faults.

Usage:

It ensures that installed Ethernet cables meet the required standards for proper network operation.

Importance:

LAN cable testers help maintain network reliability by identifying and correcting wiring issues that could degrade performance or cause network outages.

Wire Mapping Tool

Function:

This tool helps identify the wiring configuration of network cables, such as T568A or T568B for Ethernet cables.

Usage:

By tracing the wire mapping of a cable, technicians can ensure proper alignment of conductors during termination or punching down.

Importance:

Wire mapping tools ensure consistency and compliance with industry standards when installing or modifying network cabling infrastructure, minimizing errors and simplifying troubleshooting efforts.

By having these tools readily available in the S-TEK Networking Toolkit, network professionals can efficiently install, maintain, and troubleshoot networking infrastructure, ensuring optimal performance and reliability.
